SKU: KM0-SNR

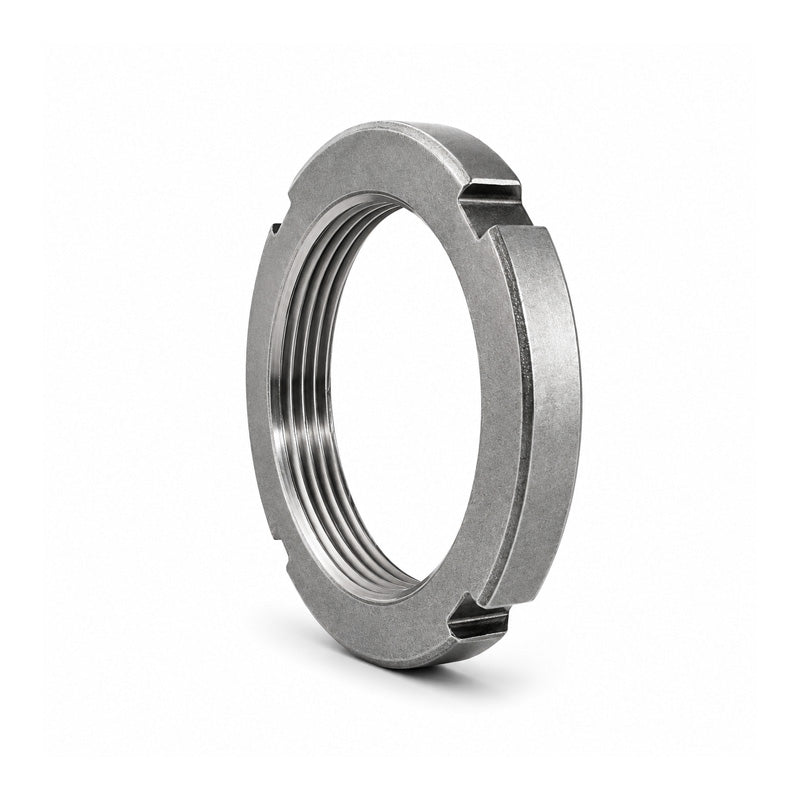

SNR KM0 Lock Nuts for Adaptor and Withdrawal Sleeves 10x18x4mm
SNR KM0 Lock Nuts for Adaptor and Withdrawal Sleeves 10x18x4mm
Out of stock
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SNR - High Quality
Technical
Technical
| G | M10x0.75mm |
|---|---|
| d1 | 13.5mm |
| d3 | 18mm |
| B | 4mm |
| b | 3mm |
| h | 2mm |
| Weight | 0.006kg |
| Appropriate locking washer | MB0 |
