SKU: KBZ24-OP-PP-INA

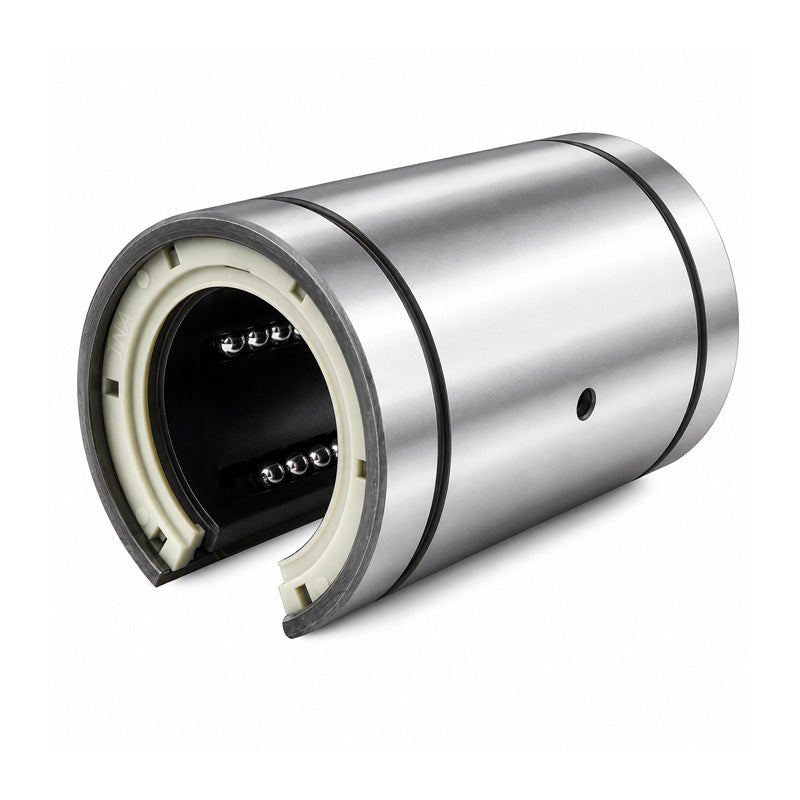

INA KBZ24OPPP Imperial Open Linear Ball Bushing with Contact Seals 1-1/2x2-3/8x3 inch
INA KBZ24OPPP Imperial Open Linear Ball Bushing with Contact Seals 1-1/2x2-3/8x3 inch
Out of stock
Description
Description
|
INA KBZ..-OP-PP Imperial Linear Ball Bearings: Linear ball bearings of the machined range KBZ and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings have an open design with a segment cutout for supported shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 38.10mm = 1-1/2 inch
- Outside Diameter:
- 60.33mm = 2-3/8 inch
- Width:
- 76.20mm = 3 inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 2-3/8 inch |
| C | 3 inch |
| A6 | 0.75 inch |
| C1 | 2.412 inch |
| C7 | 0.086 inch |
| D1 | 2.239 inch |
| α | 50° |
| Mass | 1.26 lbs |
| Number of rows of balls | 5 |
| Basic dynamic load rating C | 490 lbf |
| Basic static load rating C0 | 904 lbf |
