SKU: K15X21X15V2-NTN

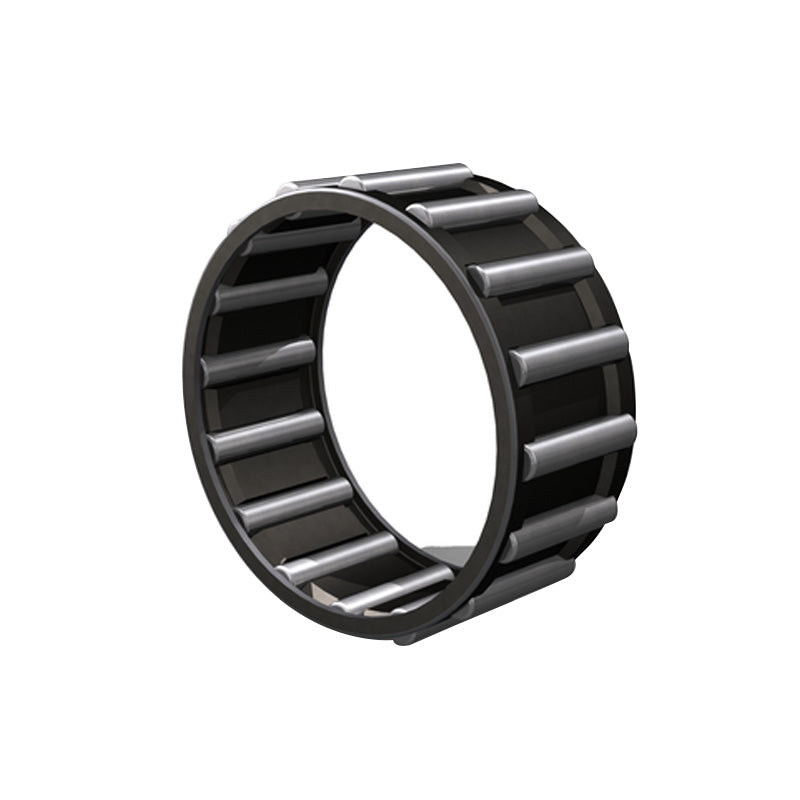

NTN K15X21X15V2 Needle Roller and Cage Assembly 15x21x15mm - Allow 2-3 Days
NTN K15X21X15V2 Needle Roller and Cage Assembly 15x21x15mm - Allow 2-3 Days
Out of stock
Share this product
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 21mm
- Width:
- 15mm
Technical
Technical
| Fw - Inside diameter | 15mm |
|---|---|
| Ew - Outside diameter | 21mm |
| Bc - Cage width | 15mm |
| Cr - Dynamic load rating | 11.9 kN |
| C0r - Static load rating | 12.5 kN |
| N - Grease lubrication limit speed | 15000 tr/min |
| N - Oil lubrication limit speed | 23000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
