SKU: JSU042CP0

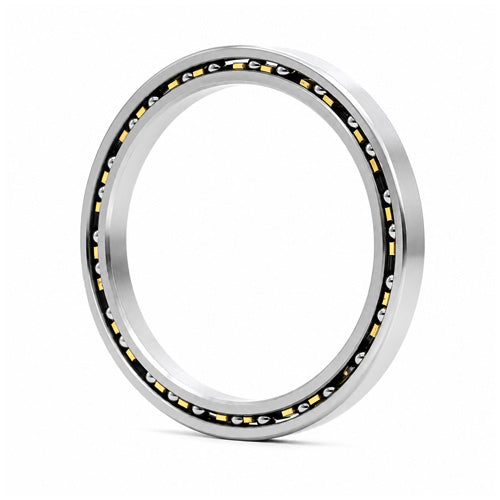

Silverthin JSU042CP0 Thin Section Sealed Radial Contact Ball Bearing 4.25x5x0.5 inch - Allow 7-10 Days
Silverthin JSU042CP0 Thin Section Sealed Radial Contact Ball Bearing 4.25x5x0.5 inch - Allow 7-10 Days
Equivalent to: JU042CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 107.95mm = 4-1/4 inch
- Outside Diameter:
- 127mm = 5 inch
- Width:
- 12.7mm = 1/2 inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| B | 4.25 inch |
|---|---|
| D | 5 inch |
| Width | 0.5 inch |
| L1 | 4.4 inch |
| L2 | 4.797 inch |
| Static Radial Load | 9.875 kN |
| Dynamic Radial Load | 4.106 kN |
| Torque Max No Load | 3.2 Oz-In |
| Weight | 0.2631 kg |
