SKU: JSHA15CL0

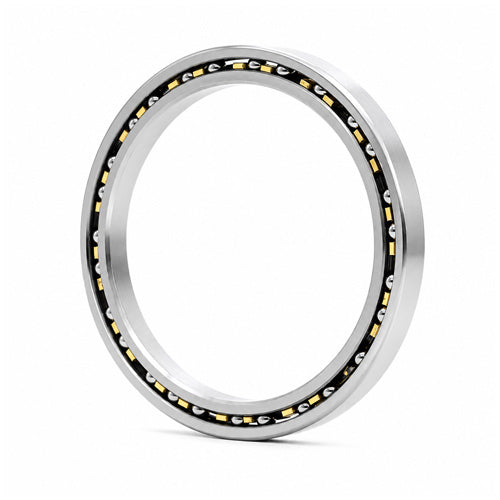

Silverthin JSHA15CL0 Thin Section Sealed Radial Contact Ball Bearing 1.5x1.875x0.25 inch - Allow 7-10 Days
Silverthin JSHA15CL0 Thin Section Sealed Radial Contact Ball Bearing 1.5x1.875x0.25 inch - Allow 7-10 Days
Equivalent to: JHA15CL0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a nylon snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 38.1mm = 1-1/2 inch
- Outside Diameter:
- 47.63mm = 1-7/8 inch
- Width:
- 6.35mm = 1/4 inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| B | 1.5 inch |
|---|---|
| D | 1.875 inch |
| Width | 0.25 inch |
| L1 | 1.64 inch |
| L2 | 1.735 inch |
| Static Radial Load | 1.837 kN |
| Dynamic Radial Load | 0.836 kN |
| Weight | 0.0177kg |
