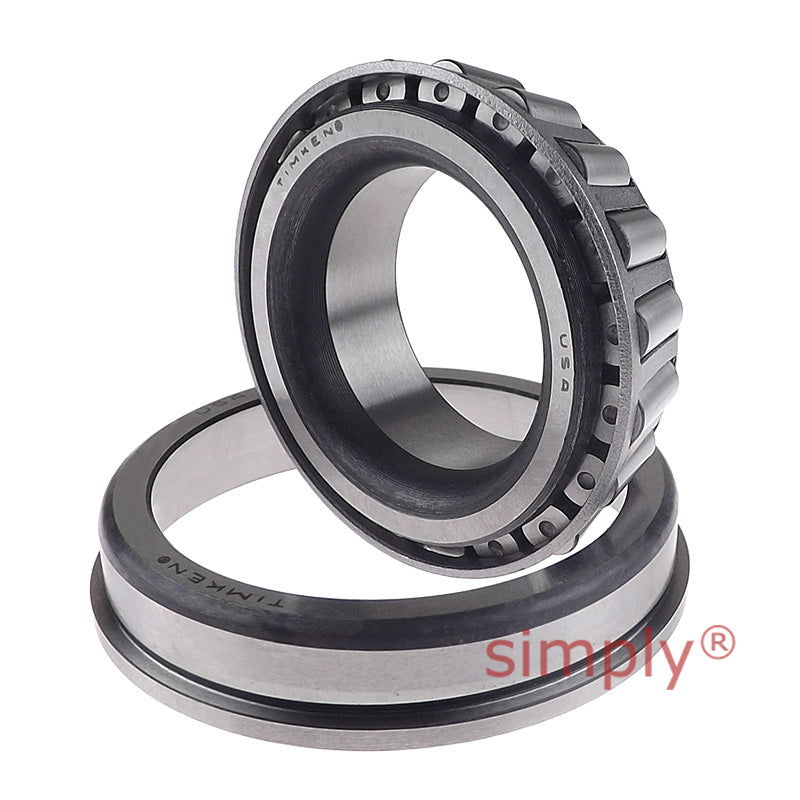

Timken JP13049/JP13010B TSF Single-Row Taper Roller Bearing 5.1181x7.2835x1.1417 inch
Timken JP13049/JP13010B TSF Single-Row Taper Roller Bearing 5.1181x7.2835x1.1417 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 185mm
- Width:
- 29mm
Technical
Technical
| d | 130mm = 5.1181 inch |
|---|---|
| D | 185mm = 7.2835 inch |
| T1 | 13mm = 0.5118 inch |
| Dynamic (1) C1 | 181000N |
| Factors (5) e | 0.47 |
| Factors (5) Y | 1.27 |
| Dynamic (2) C90 | 47000N |
| Dynamic (2) Ca90 | 38100N |
| Factors (5) K | 1.24 |
| Static Co | 283000N |
| Bearing B | 27mm = 1.063 inch |
| Bearing C | 21mm = 0.8268 inch |
| Bearing a(3) | 8.9mm = 0.35 inch |
| Bearing D1 | 192mm = 7.5591 inch |
| Bearing C2 | 5mm = 0.1969 inch |
| Shaft max shaft fillet radius R(4) | 3mm = 0.12 inch |
| Shaft backing shoulder diameter da | 137mm = 5.39 inch |
| Shaft backing shoulder diameter db | 143mm = 5.63 inch |
| Housing backing shoulder diameter Da | 188mm = 7.4 inch |
| G1 | 192 |
| G2 | 60.3 |
| Cg | 0.1064 |
