SKU: HMV23E-BGL

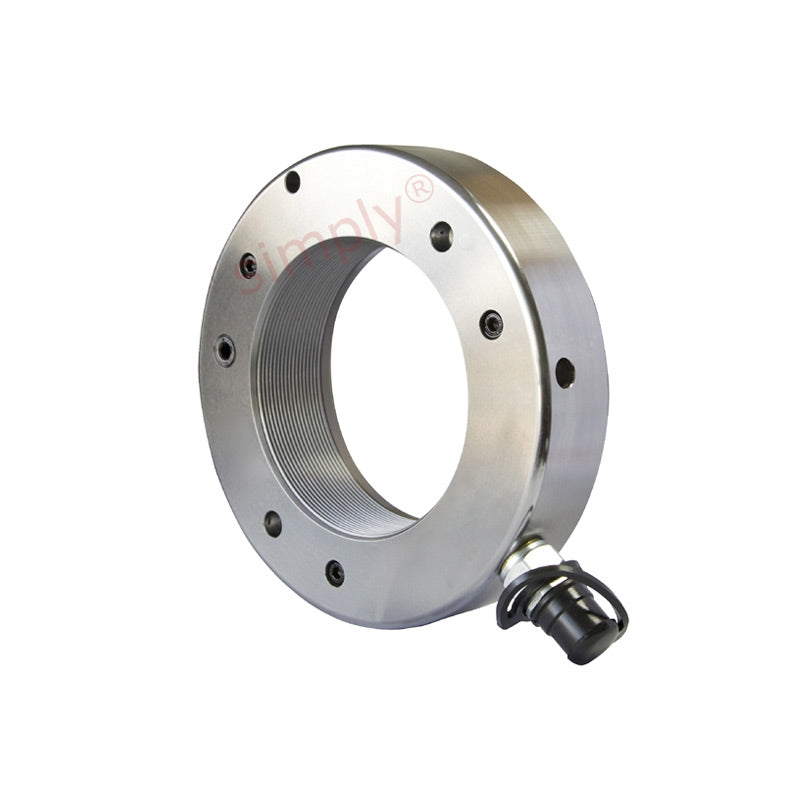

BGL HMV23E Metric Hydraulic Nut M115x2 Thread - Allow 1-2 Days
BGL HMV23E Metric Hydraulic Nut M115x2 Thread - Allow 1-2 Days
Out of stock
Description
Description
|
BGL HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using a Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of a Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- BGL - High Quality
- Thread Size:
- M115x2
- Inside Diameter:
- 115.5mm
- Outside Diameter:
- 182mm
- Width:
- 38mm
- Flange Width:
- 6mm
Technical
Technical
| G Thread | M115x2 |
|---|---|
| d1 | 115.5mm |
| d2 | 174mm |
| d3 | 182mm |
| B | 38mm |
| B1 | 6mm |
| Permitted piston displacement | 5mm |
| Piston area | 5800mm2 |
