SKU: HMV-74-EBF-HN-SNR

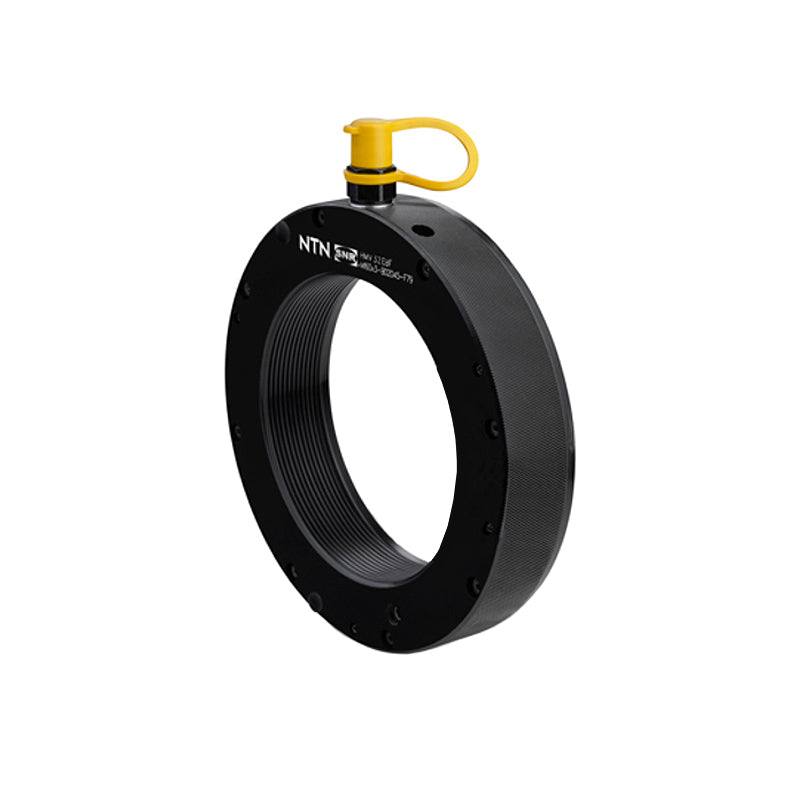

SNR HMV74 Metric Hydraulic Nut with Tr370x5 Thread - Allow 2-3 Days
SNR HMV74 Metric Hydraulic Nut with Tr370x5 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr370x5
- Inside Diameter:
- 372mm
- Outside Diameter:
- 486mm
- Width:
- 68mm
- Flange Width:
- 11mm
Technical
Technical
| HMV | HMV74 |
|---|---|
| Thread G | Tr370x5 |
| Outside Diameter D | 486mm |
| Total Width B | 68mm |
| Piston Diameter max. d2 | 482mm |
| Permitted Piston Stroke | 16mm |
| Flange Width B1 | 11mm |
| Body Width B2 | 57mm |
| Diameter d1 | 372mm |
| Piston Surface Area | 33300mm2 |
| Weight | 39.2kg |
