SKU: HM259049D/HM259010/HM259010EA-TIM

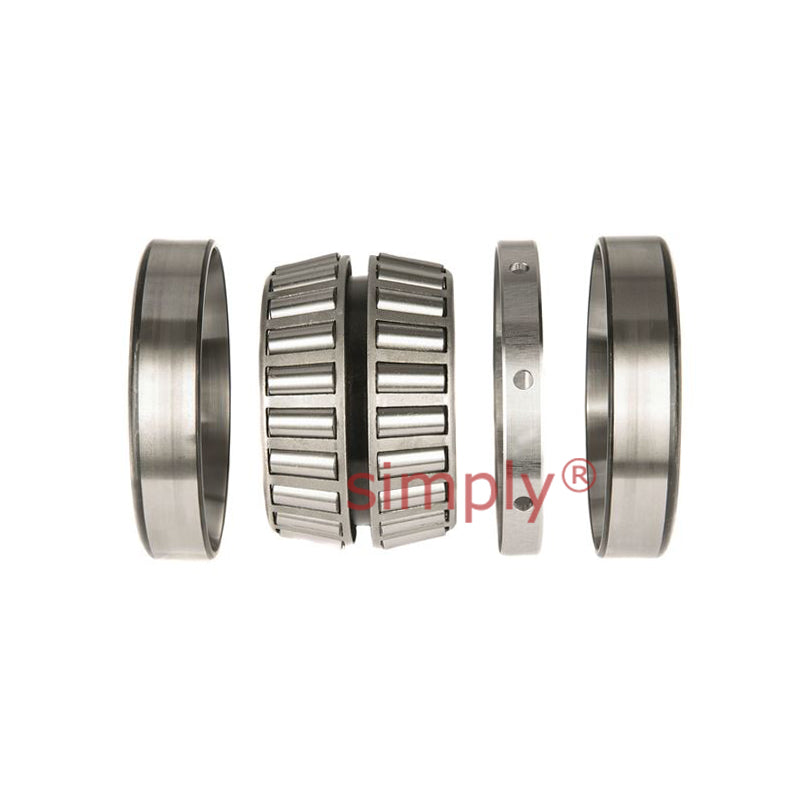

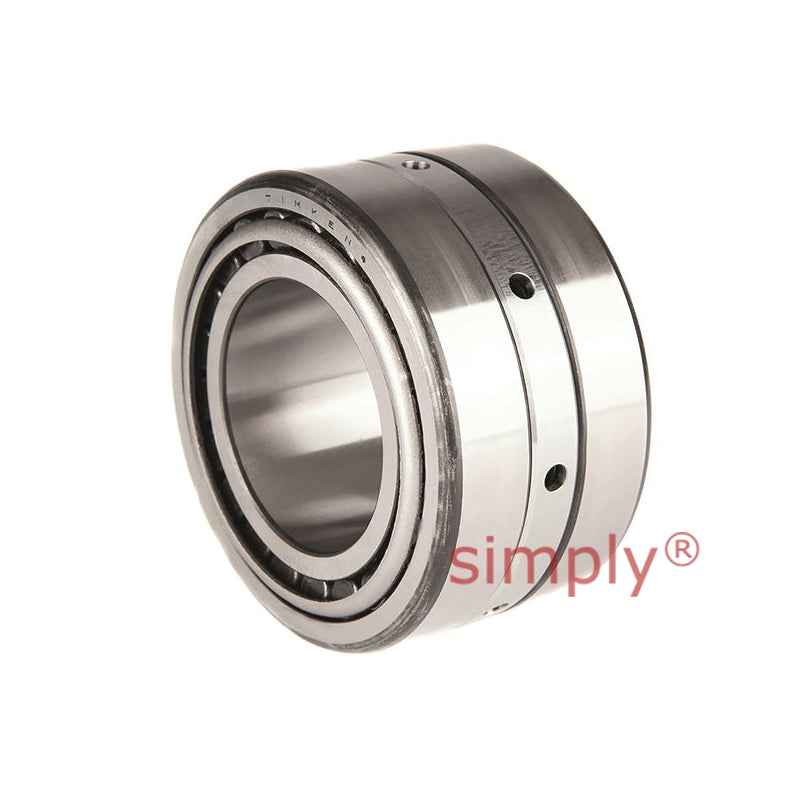

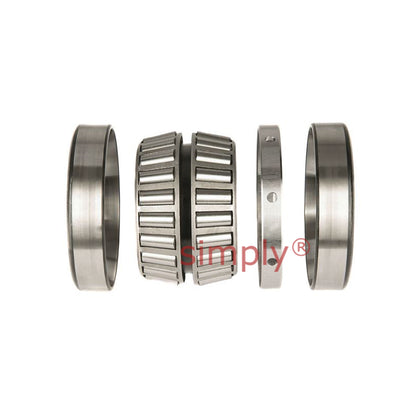

Timken HM259049D/HM259010/HM259010EA TDI Double Inner Race Taper Roller Bearing 12.5x17.625x6.25x6.25 inch
Timken HM259049D/HM259010/HM259010EA TDI Double Inner Race Taper Roller Bearing 12.5x17.625x6.25x6.25 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 317.5mm = 12.5 (12-1/2) inch
- Outside Diameter:
- 447.68mm = 17.625 (17-5/8) inch
- Width:
- 158.75mm = 6.25 (6-1/4) inch
Technical
Technical
| d | 317.5mm = 12.5 inch |
|---|---|
| D | 447.675mm = 17.625 inch |
| T | 158.75mm = 6.25 inch |
| C | 158.75mm = 6.25 inch |
| Dynamic (1) C1 | 2500000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.02 |
| Factors (5) Y2 | 3 |
| Dynamic (2) C90 | 372000N |
| Dynamic (2) Ca90 | 213000N |
| Dynamic (2) C90(2) | 647000N |
| Factors (5) K | 1.74 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 340mm = 13.39 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 418mm = 16.46 inch |
| G1 | 2940 |
| G2 | 304 |
| Cg | 0.1863 |
