SKU: HK0808-EU

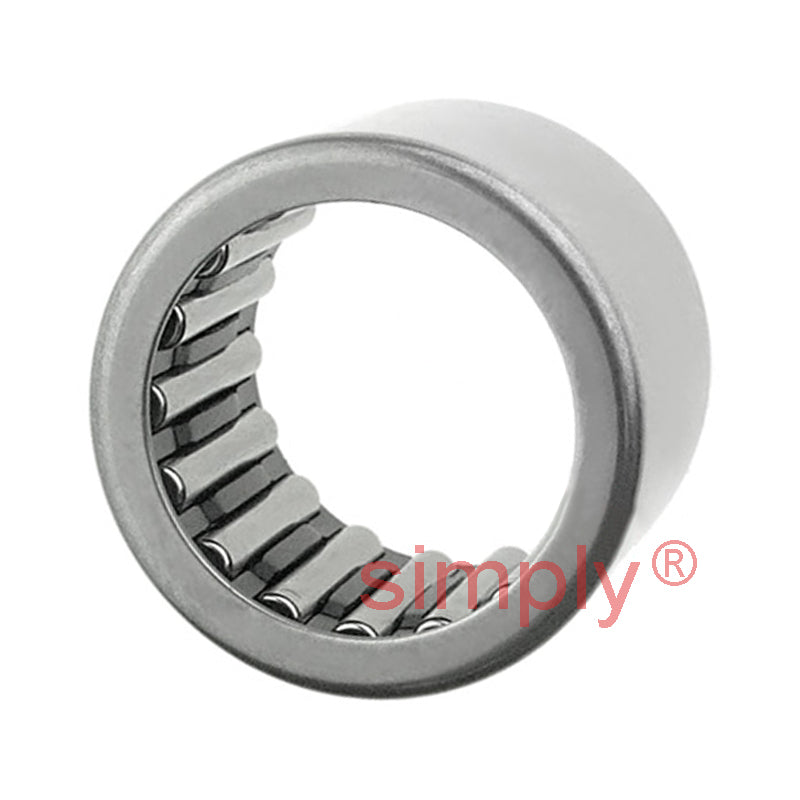

HK0808 Budget Drawn Cup Type Needle Roller Bearing Open End Type 8x12x8mm
HK0808 Budget Drawn Cup Type Needle Roller Bearing Open End Type 8x12x8mm
Regular price
€3,97
ex VAT
Regular price
Sale price
€3,97
ex VAT
Equivalent to: RHNA081208
In stock
Price Break
10+
€3,03
19+
€2,86
29+
€2,82
39+
€2,79
49+
€2,76
74+
€2,72
99+
€2,55
199+
€2,52
249+
€2,48
499+
€2,45
999+
€2,38
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: RHNA081208
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Width:
- 8mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 12mm |
| C | 8mm |
| Dynamic load C | 2700 N |
| Static load Co | 2750 N |
| Fatigue load limit Pu | 285 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| r1r2 min | 0.4mm |
| Da max | 8.3mm |
| ra max | 0.4mm |
| Seal | G8x12x3 |
| Weight | 30 g |
