SKU: HCT320-64

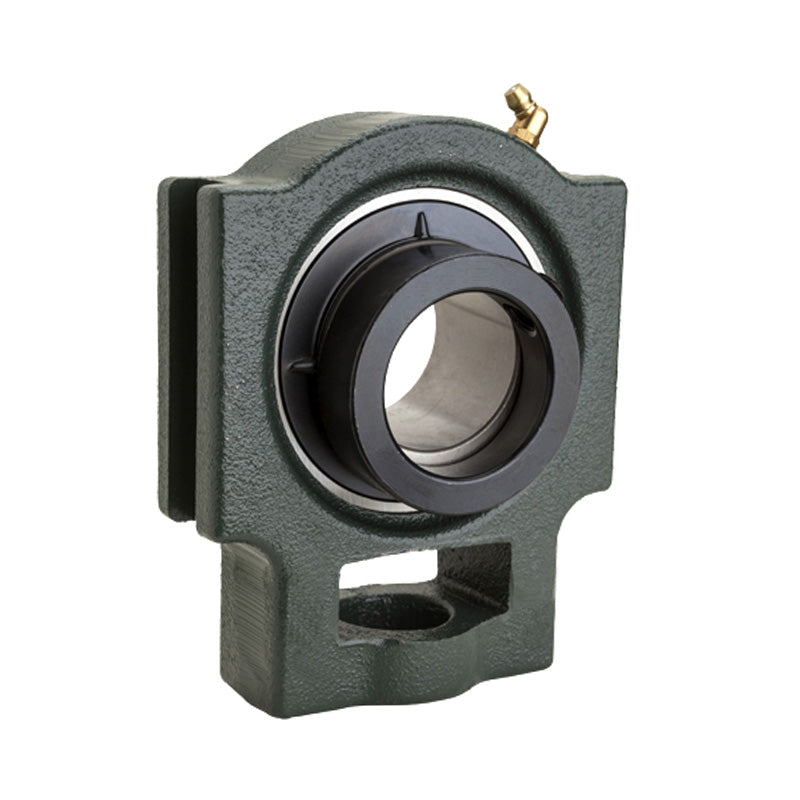

HCT320-64 Imperial Cast Iron Take Up Unit Housing with 4 inch Bore Eccentric Collar Insert
HCT320-64 Imperial Cast Iron Take Up Unit Housing with 4 inch Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCT300 Series Heavy-Duty Take-Up Housing Units: Heavy-duty bearing unit supplied with a fully sealed bearing insert fitted in the slotted take-up housing and include a grease nipple to facilitate re-lubrication. The bearing insert provided with this housing has an eccentric collar. The inserts can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Style:
- HCT
Technical
Technical
| d | 4 inch |
|---|---|
| o | 48mm |
| g | 32mm |
| p | 175mm |
| q | 115mm |
| s | 59mm |
| b | 200mm |
| k | 35mm |
| e | 260mm |
| a | 290mm |
| w | 345mm |
| j | 120mm |
| l | 75mm |
| r | 135mm |
| h | 210mm |
| Bi | 128.6mm |
| n | 50mm |
| Bearing No. | HC320-64 |
| Housing No. | T320 |
| Weight | 32.5 kg |
