SKU: HCT314-44

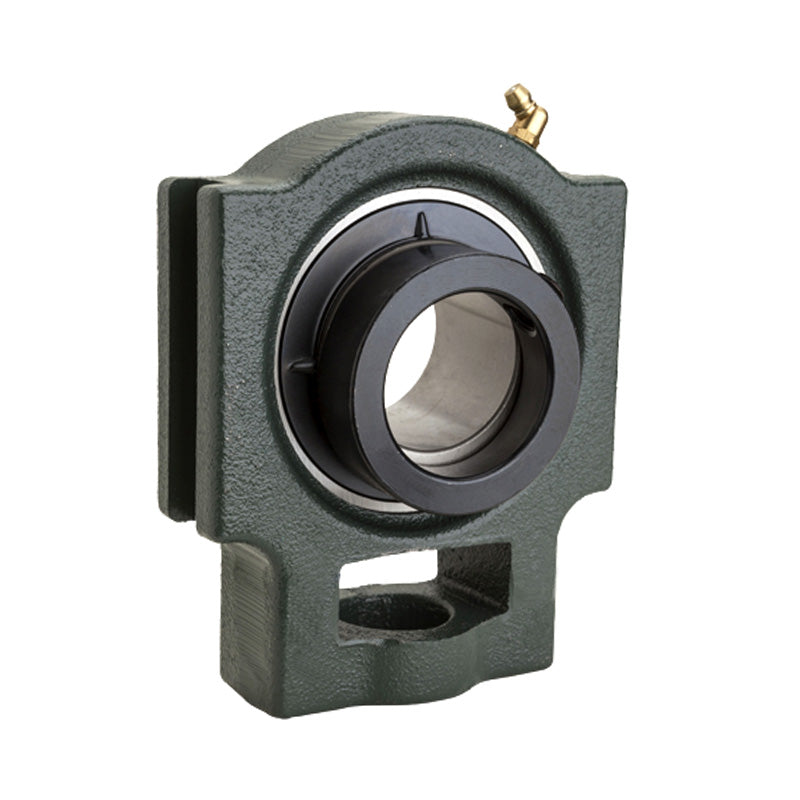

HCT314-44 Imperial Cast Iron Take Up Unit Housing with 2-3/4 inch Bore Eccentric Collar Insert
HCT314-44 Imperial Cast Iron Take Up Unit Housing with 2-3/4 inch Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCT300 Series Heavy-Duty Take-Up Housing Units: Heavy-duty bearing unit supplied with a fully sealed bearing insert fitted in the slotted take-up housing and include a grease nipple to facilitate re-lubrication. The bearing insert provided with this housing has an eccentric collar. The inserts can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- HCT
Technical
Technical
| d | 2-3/4 inch |
|---|---|
| o | 36mm |
| g | 25mm |
| p | 130mm |
| q | 85mm |
| s | 46mm |
| b | 140mm |
| k | 26mm |
| e | 180mm |
| a | 202mm |
| w | 252mm |
| j | 90mm |
| l | 52mm |
| r | 97mm |
| h | 155mm |
| Bi | 92.1mm |
| n | 34.15mm |
| Bearing No. | HC314-44 |
| Housing No. | T314 |
| Weight | 11.7 kg |
