SKU: HCT309

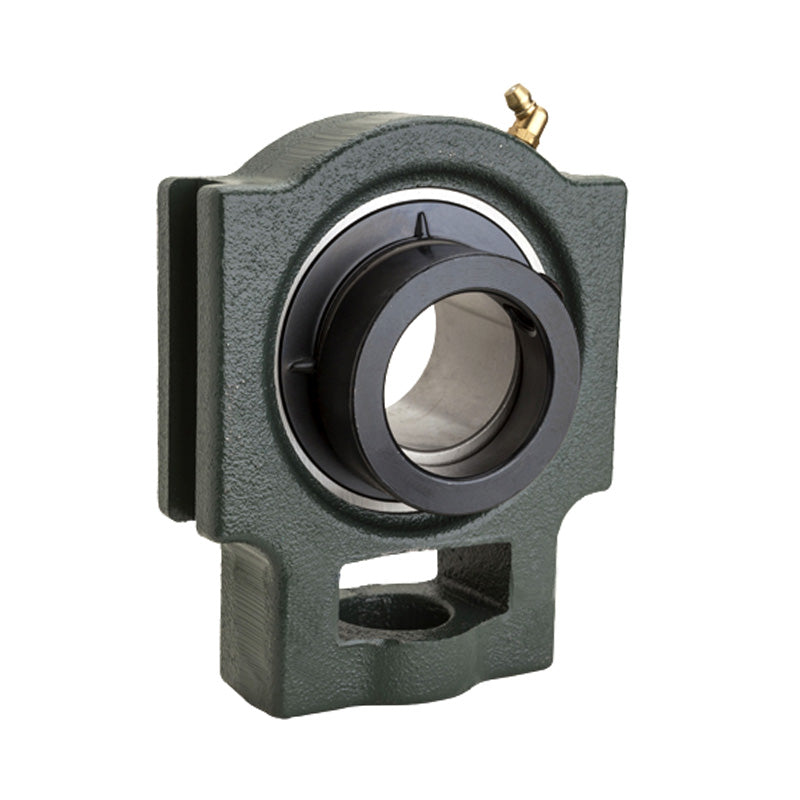

HCT309 Metric Cast Iron Take Up Unit Housing with 45mm Bore Eccentric Collar Insert
HCT309 Metric Cast Iron Take Up Unit Housing with 45mm Bore Eccentric Collar Insert
Out of stock
Share this product
Description
Description
HCT300 Series Heavy-Duty Take-Up Housing Units: Heavy-duty bearing unit supplied with a fully sealed bearing insert fitted in the slotted take-up housing and include a grease nipple to facilitate re-lubrication. The bearing insert provided with this housing has an eccentric collar. The inserts can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, eccentric collar
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- HCT
Technical
Technical
| d | 45mm |
|---|---|
| o | 24mm |
| g | 18mm |
| p | 90mm |
| q | 55mm |
| s | 34mm |
| b | 97mm |
| k | 18mm |
| e | 125mm |
| a | 138mm |
| w | 178mm |
| j | 55mm |
| l | 38mm |
| r | 68mm |
| h | 110mm |
| Bi | 58.7mm |
| n | 19.8mm |
| Bearing No. | HC309 |
| Housing No. | T309 |
| Weight | 4.22 kg |
