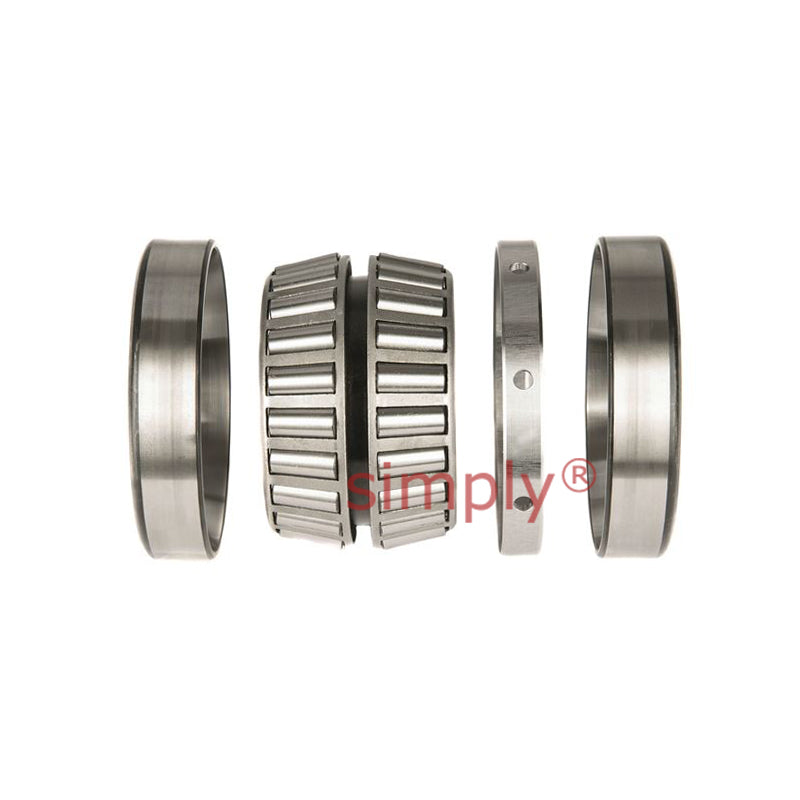

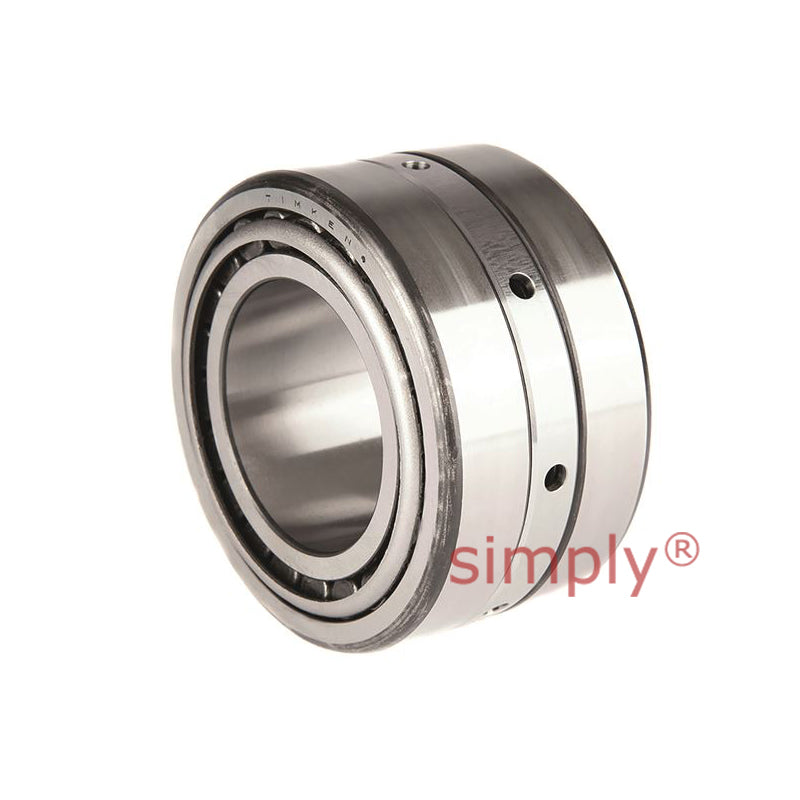

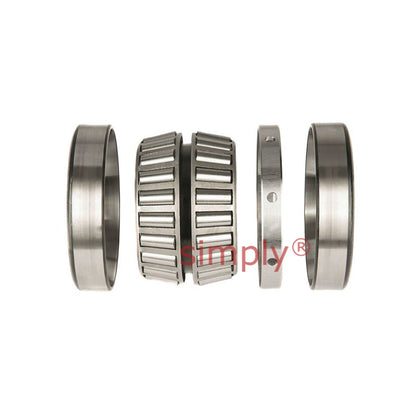

Timken H432549D/H432510/H432510EA TDI Double Inner Race Taper Roller Bearing 6.125x9.75x4.8125x4.8125 inch
Timken H432549D/H432510/H432510EA TDI Double Inner Race Taper Roller Bearing 6.125x9.75x4.8125x4.8125 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 155.58mm = 6.125 (6-1/8) inch
- Outside Diameter:
- 247.65mm = 9.75 (9-3/4) inch
- Width:
- 122.24mm = 4.813 (4-13/16) inch
Technical
Technical
| d | 155.575mm = 6.125 inch |
|---|---|
| D | 247.65mm = 9.75 inch |
| T | 122.238mm = 4.8125 inch |
| C | 122.238mm = 4.8125 inch |
| Dynamic (1) C1 | 1080000N |
| Factors (5) e | 0.37 |
| Factors (5) Y1 | 1.83 |
| Factors (5) Y2 | 2.73 |
| Dynamic (2) C90 | 161000N |
| Dynamic (2) Ca90 | 101000N |
| Dynamic (2) C90(2) | 280000N |
| Factors (5) K | 1.59 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 172mm = 6.77 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 224mm = 8.82 inch |
| G1 | 658 |
| G2 | 97.7 |
| Cg | 0.1178 |
