SKU: H239649D/H239612/H239612EE-TIM

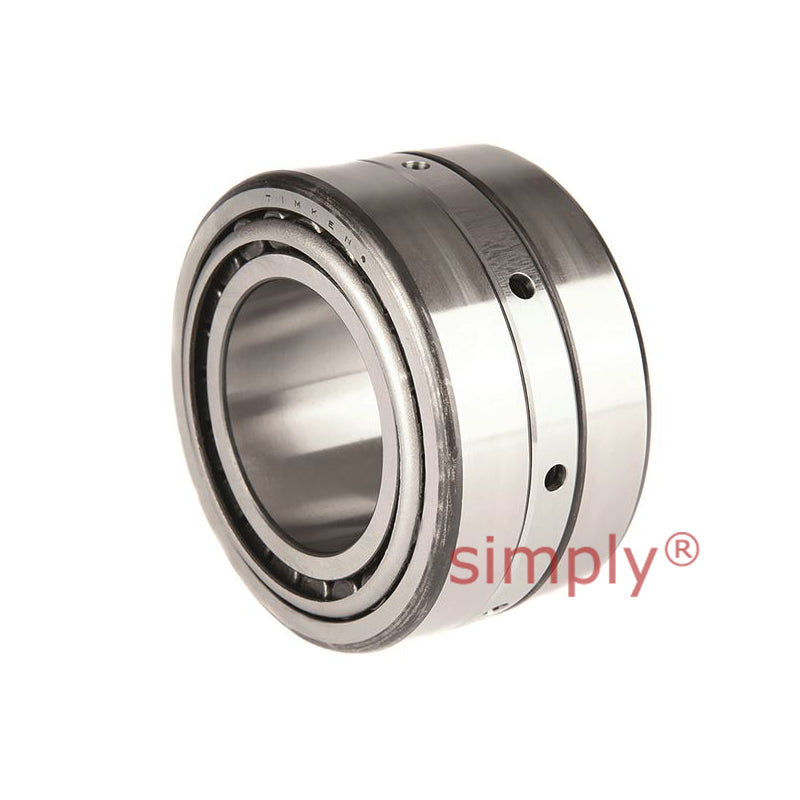

Timken H239649D/H239612/H239612EE TDI Double Inner Race Taper Roller Bearing 7.375x12.625x6.625x6.375 inch
Timken H239649D/H239612/H239612EE TDI Double Inner Race Taper Roller Bearing 7.375x12.625x6.625x6.375 inch
Out of stock
Description
Description

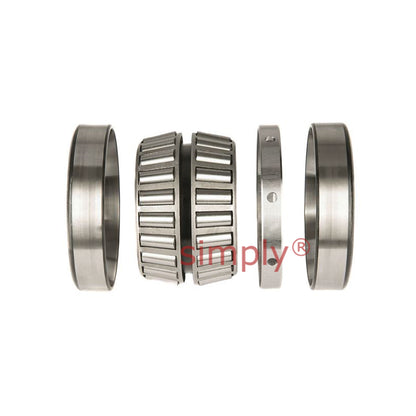

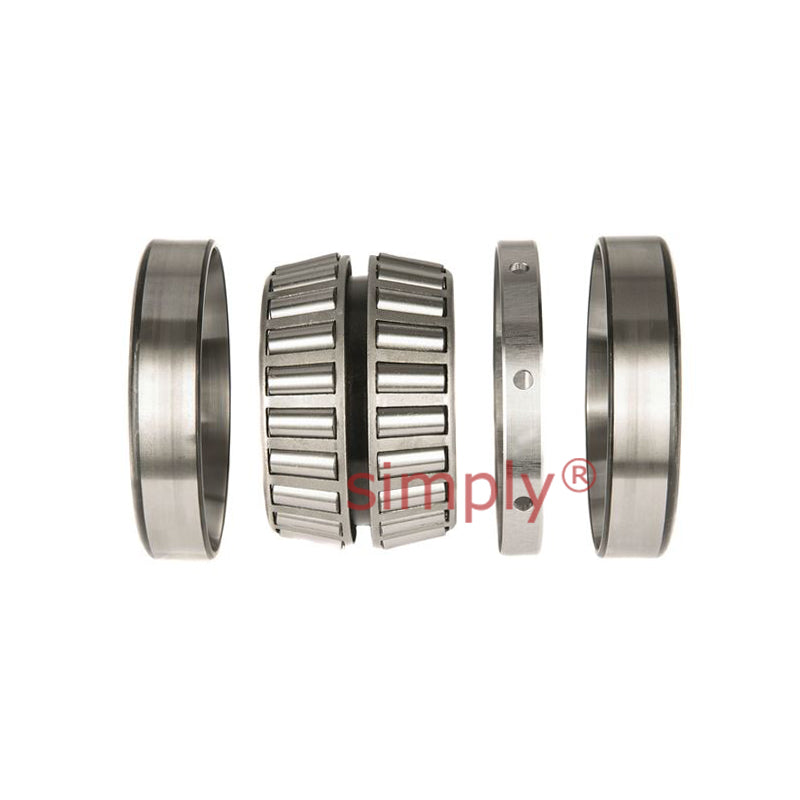

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 187.33mm = 7.375 (7-3/8) inch
- Outside Diameter:
- 320.68mm = 12.625 (12-5/8) inch
- Width:
- 168.28mm = 6.625 (6-5/8) inch
Technical
Technical
| d | 187.325mm = 7.375 inch |
|---|---|
| D | 320.675mm = 12.625 inch |
| T | 168.275mm = 6.625 inch |
| C | 161.925mm = 6.375 inch |
| Dynamic (1) C1 | 1790000N |
| Factors (5) e | 0.32 |
| Factors (5) Y1 | 2.12 |
| Factors (5) Y2 | 3.15 |
| Dynamic (2) C90 | 267000N |
| Dynamic (2) Ca90 | 145000N |
| Dynamic (2) C90(2) | 464000N |
| Factors (5) K | 1.83 |
| Shaft max shaft fillet radius R (3) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 209mm = 8.23 inch |
| Housing max shaft fillet radius r (3) | 4.8mm = 0.19 inch |
| Housing backing shoulder diameter Db | 293mm = 11.54 inch |
| G1 | 906 |
| G2 | 90.3 |
| Cg | 0.1242 |
