SKU: GRA014-NPP-B-AS2/V-INA

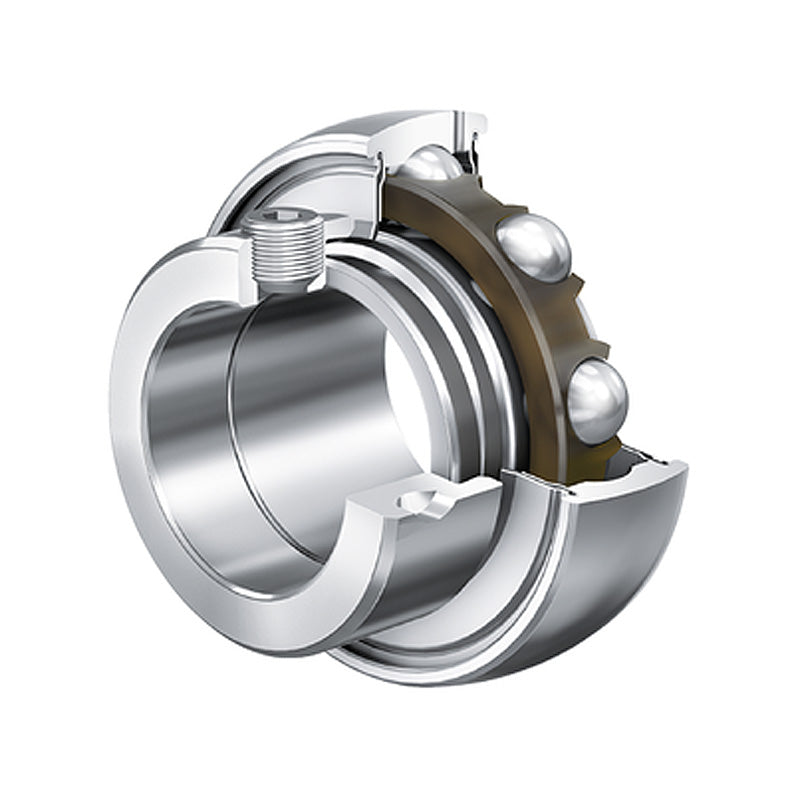

INA GRA014NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 22.23x52x31mm
INA GRA014NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 22.23x52x31mm
Out of stock
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Width:
- 31mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| d | 22.23mm |
| Dsp | 2.0472 inch |
| Dsp | 52mm |
| B1 | 1.2200 inch |
| B1 | 31mm |
| B | 0.843 inch |
| C | 0.591 inch |
| Ca | 0.154 inch |
| d2 | 1.201 inch |
| d3 | 1.476 inch |
| S | 0.295 inch |
| W | 1/8 inch |
| Dynamic load Cr | 3150 lbf |
| Dynamic load Cr | 14000 N |
| Static load C0r | 1760 lbf |
| Static load C0r | 7800 N |
| Weight | 0.42 lbs |
