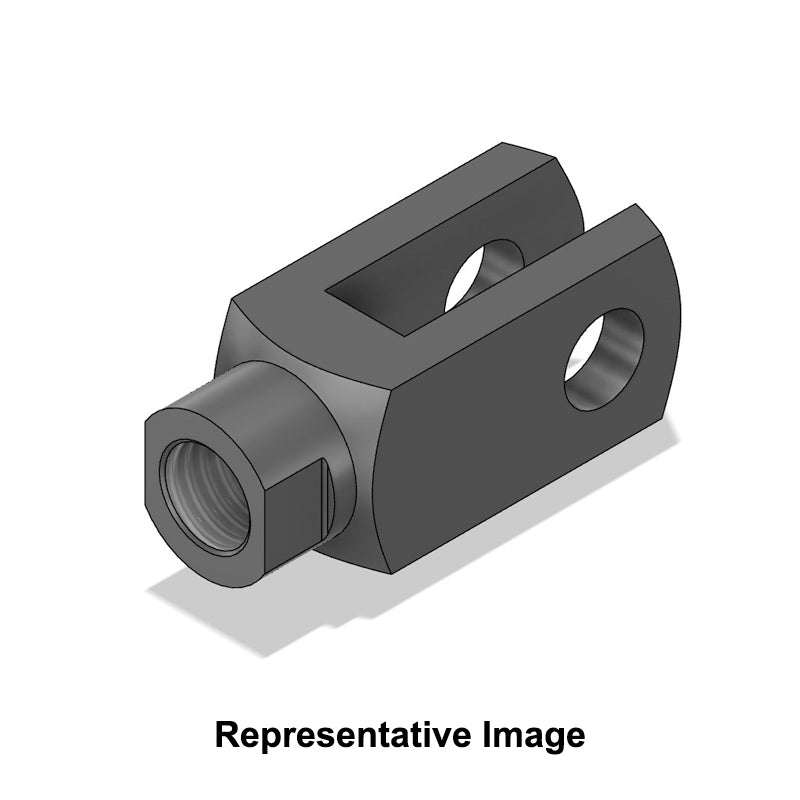

Chiavette GR10X40LH Left Hand Female Steel Rotating Clevis 10mm Bore 40mm Base / Bore Center M10x1.5 Thread - Allow 7-10 Days

Chiavette Steel Clevis with Rotating Shaft: A Clevis (also known as a yoke) is a versatile mechanical linkage component commonly used in industrial and mechanical applications. Clevises are paired with a clevis pin (available separately) that fits through the holes at the end of the clevis prongs. Made according to DIN 71752 and crafted from automatic steel (11SMnPb30), these clevises feature a forked end while the opposite end has a female thread for connection to machinery or equipment. Additionally, these types of clevises have a rotating shaft that allows for secure attachment to rods, cables, or other hardware while enabling rotational movement around the attached axis. This rotational capability adds versatility to the clevis, allowing it to accommodate varying angles and positions, enhancing flexibility in mechanical systems.

Brand / Quality:

Chiavette - High Quality

Thread Size:

M10x1.5

Thread M / F:

Female

Thread Direction:

Left Hand

Inside Diameter:

10mm

Length:

72mm

Style:

Rotating Base
