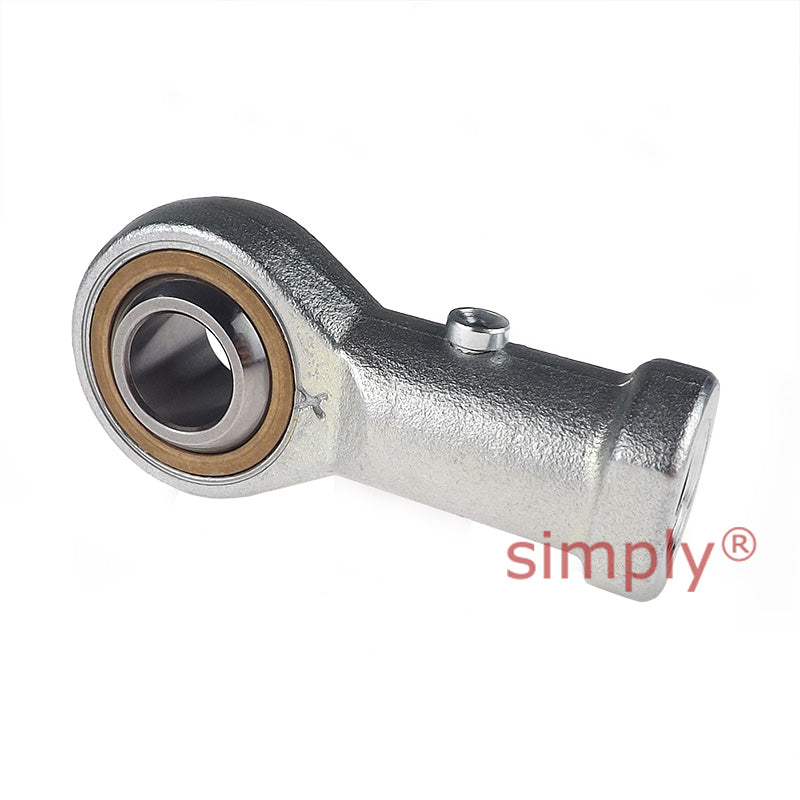

Fluro GILXS14 Left Hand Steel / Bronze Female Plain Rod End M14 Thread
Fluro GILXS14 Left Hand Steel / Bronze Female Plain Rod End M14 Thread
Out of stock
Share this product
Description
Description
Fluro GIXS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from heat-treated steel, zinc plated and regreasable through a grease nipple in housing. Especially suitable for high pressure and tension loads.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M14
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 14mm
- Inside Diameter:
- 14mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 14mm |
|---|---|
| B | 19mm |
| M | 13.5mm |
| A | 36mm |
| F | 57mm |
| L | 75mm |
| K | 25mm |
| J | 20mm |
| O | 16.8mm |
| SW | 22mm |
| Thread Size G | M14 |
| GL | 25mm |
| Static Load Co | 57kN |
| Dynamic Load | 17kN |
| Limiting Speed | 750rev/min |
| Approx weight | 0.17kg |
