SKU: GILRSW16-FLURO

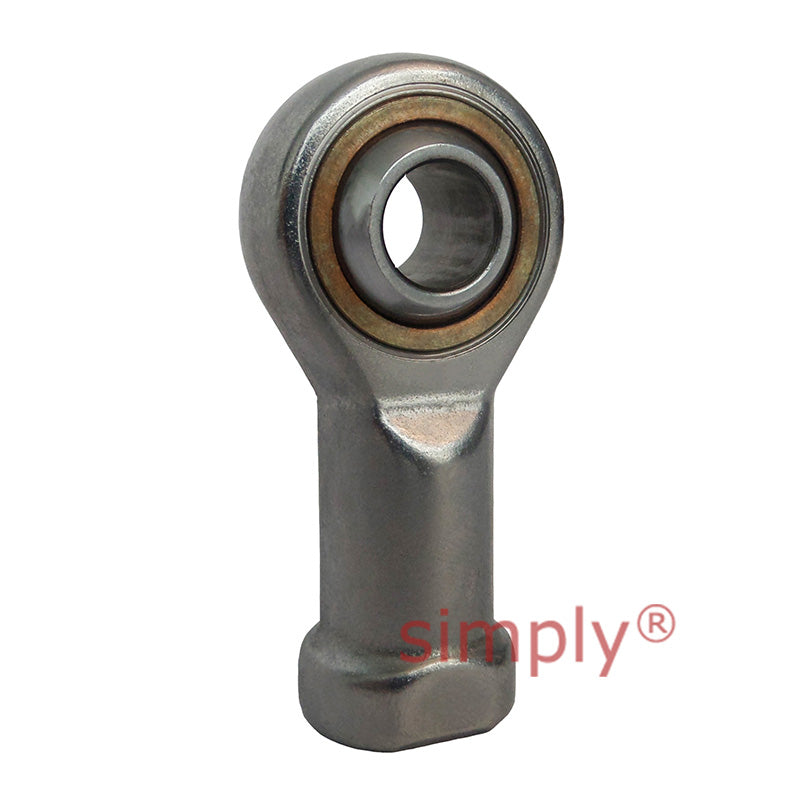

Fluro GILRSW16 Left Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M16 Thread

Fluro GILRSW16 Left Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M16 Thread

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

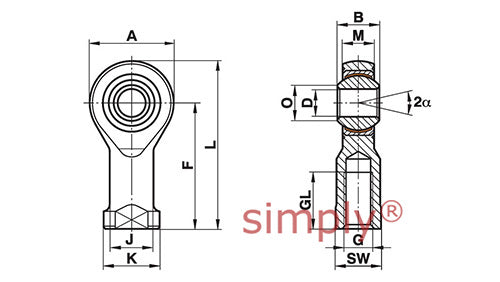

Bore Size D 16mm
B 21mm
M 15mm
A 42mm
F 64mm
L 85mm
K 27mm
J 22mm
O 19.3mm
SW 22mm
Thread Size G M16
GL 28mm
Static Load Co 60.5kN
Dynamic Load 52.5kN
Limiting Speed 230rev/min
Approx weight 0.23kg
