SKU: GE70-KRR-B-FA101-INA

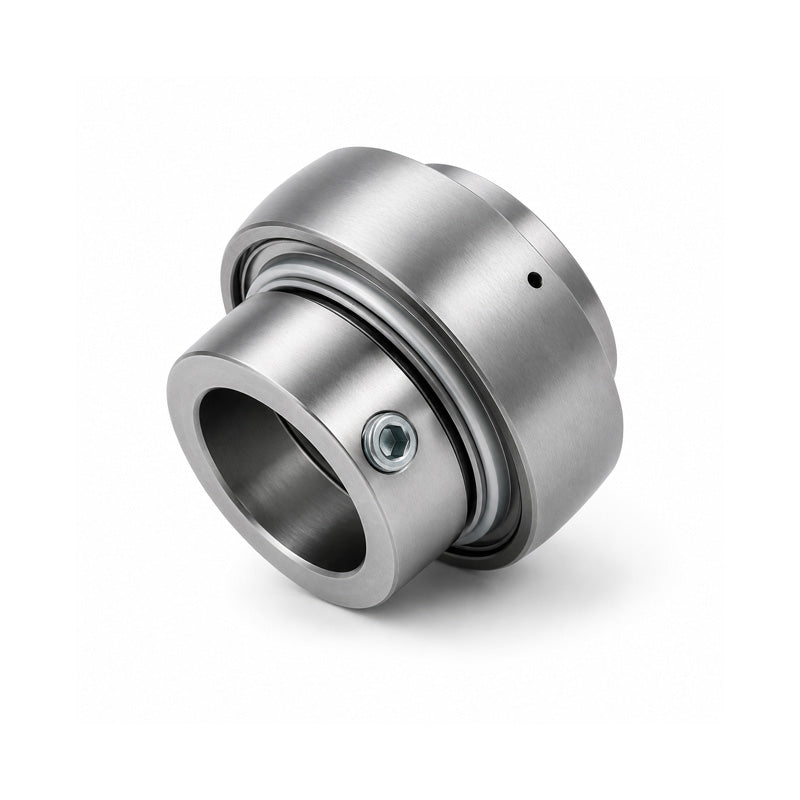

INA GE70KRRBFA101 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures from -40deg C to 180deg C 70x125x66mm
INA GE70KRRBFA101 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures from -40deg C to 180deg C 70x125x66mm
Out of stock
Description
Description
|
INA GE..KRR-B-FA101 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide operating temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 66mm
Technical
Technical
| d | 70mm |
|---|---|
| Dsp | 125mm |
| B1 | 66mm |
| B | 48.5mm |
| C | 28mm |
| C2 | 32mm |
| Ca | 8.9mm |
| D1 | 109mm |
| d1 | 85.2mm |
| d3 max | 96mm |
| S | 21.5mm |
| W | 6mm |
| Dynamic load Cr | 62000 N |
| Static load C0r | 44000 N |
| Weight | 2.15 kg |
