SKU: GALRS10-FLURO

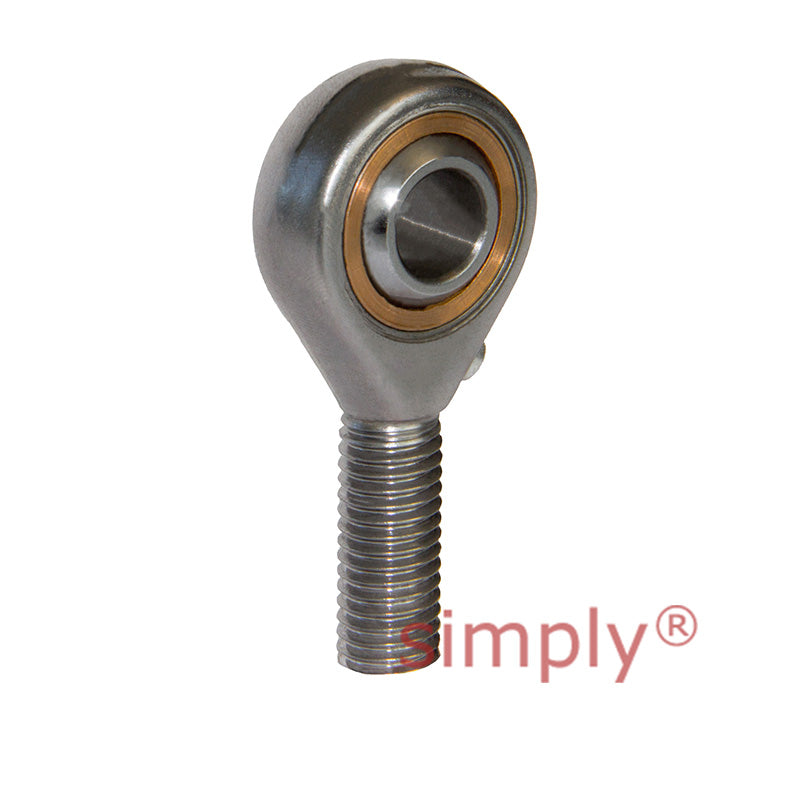

Fluro GALRS10 Left Hand Stainless Steel / Bronze Male Plain Rod End M10 Thread
Fluro GALRS10 Left Hand Stainless Steel / Bronze Male Plain Rod End M10 Thread
Out of stock
Share this product
Description
Description
Fluro GARS Series Stainless Steel / Bronze Maintenance Required Male Plain Rod Ends: Rod Ends with male thread from stainless steel, regreasable through grease nipple in housing. For use in corrosive environments
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M10
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 10mm
- Inside Diameter:
- 10mm
- Material:
- Stainless Steel / Bronze
Technical
Technical
| Bore Size D | 10mm |
|---|---|
| B | 14mm |
| M | 10.5mm |
| A | 28mm |
| F | 48mm |
| L | 62mm |
| O | 12.9mm |
| Thread Size G | M10 |
| GL | 28mm |
| Static Load Co | 25.5kN |
| Dynamic Load | 10kN |
| Limiting Speed | 1000rev/min |
| Approx weight | 0.056kg |
