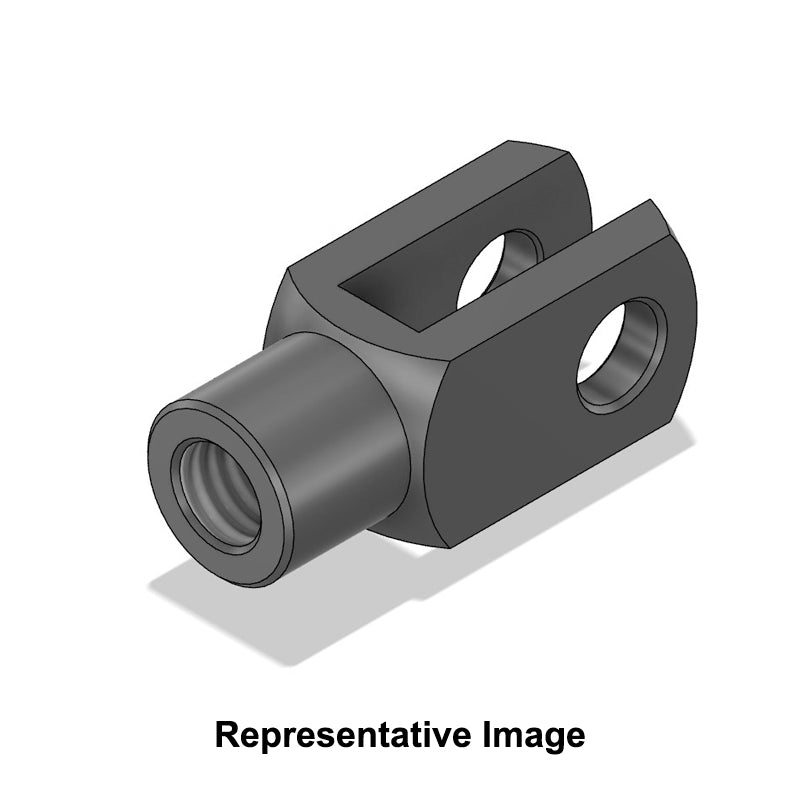

Chiavette G10X20FGPNLH Left Hand Female Steel Clevis for Pneumatic Cylinders 10mm Bore 20mm Base / Bore Center M10x1.25 Thread - Allow 7-10 Days

Chiavette Steel Clevis: A Clevis (also known as a yoke) is a versatile mechanical linkage component commonly used in industrial and mechanical applications. Clevises are paired with a clevis pin (available separately) that fits through the holes at the end of the clevis prongs. Made according to DIN 71752 and crafted from automatic steel (11SMnPb30), these clevises feature a forked end with holes for secure attachment to rods, cables, or other hardware, while the opposite end has a female thread for connection to machinery or equipment.

These products are certified to CETOP standards (ISO 8139), ensuring quality and compatibility with European hydraulic systems. CETOP, the European Committee for Hydraulic and Pneumatic Transmission, sets rigorous standards for fluid power components, guaranteeing reliability and performance in industrial applications.

Brand / Quality:

Chiavette - High Quality

Thread Size:

M10x1.25

Thread M / F:

Female

Thread Direction:

Left Hand

Inside Diameter:

10mm

Length:

52mm

Style:

* Standard
