SKU: FYT40TF/VA201-SKF

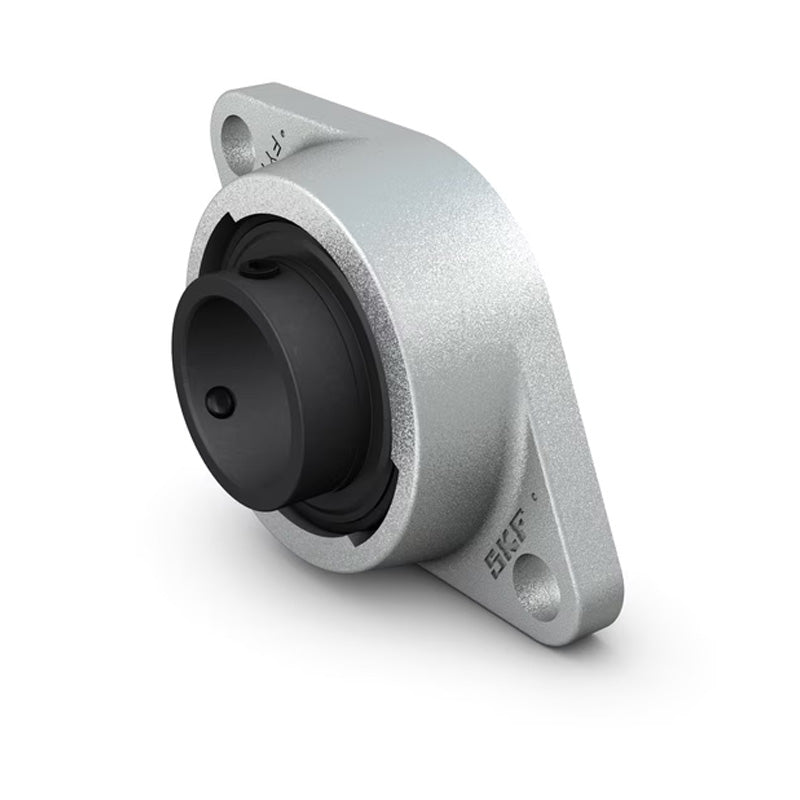

SKF FYT40TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 40mm
SKF FYT40TFVA201 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 40mm
Out of stock
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| H | 171.5mm |
| J | 143.7mm |
| L | 102mm |
| N | 14.3mm |
| G | 12mm |
| T | 54.2mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 1.65 kg |
