SKU: FYKC30NTR/VE495-SKF

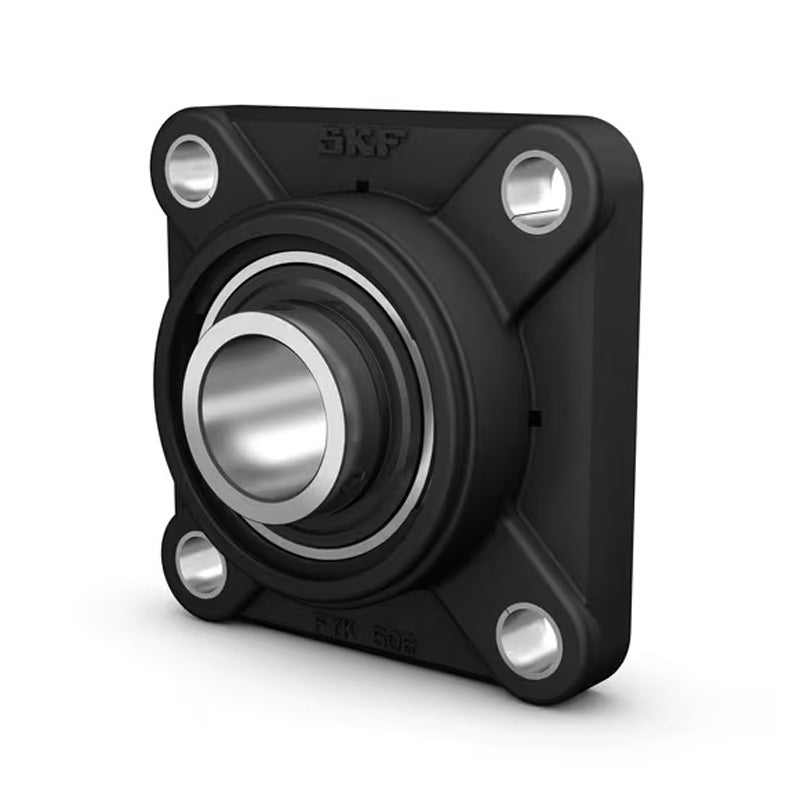

SKF FYKC30NTR/VE495 Thermoplastic Square Housing for the Food Industry with 30mm Insert
SKF FYKC30NTR/VE495 Thermoplastic Square Housing for the Food Industry with 30mm Insert
Out of stock
Description
Description
|
SKF Square Flanged Y-bearing Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYKC
- Bolt Hole Centres:
- 82.5mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 33mm |
| A2 | 15.3mm |
| B | 38.1mm |
| Da | 93.7mm |
| J | 82.5mm |
| L | 108mm |
| N | 12mm |
| G | 10mm |
| s1 | 22.2mm |
| T | 42.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 3800 rpm |
| A5 | 20mm |
| Weight | 0.48 kg |
| Compatible end cover closed | ECY206 |
