SKU: FYJ30TF-SKF

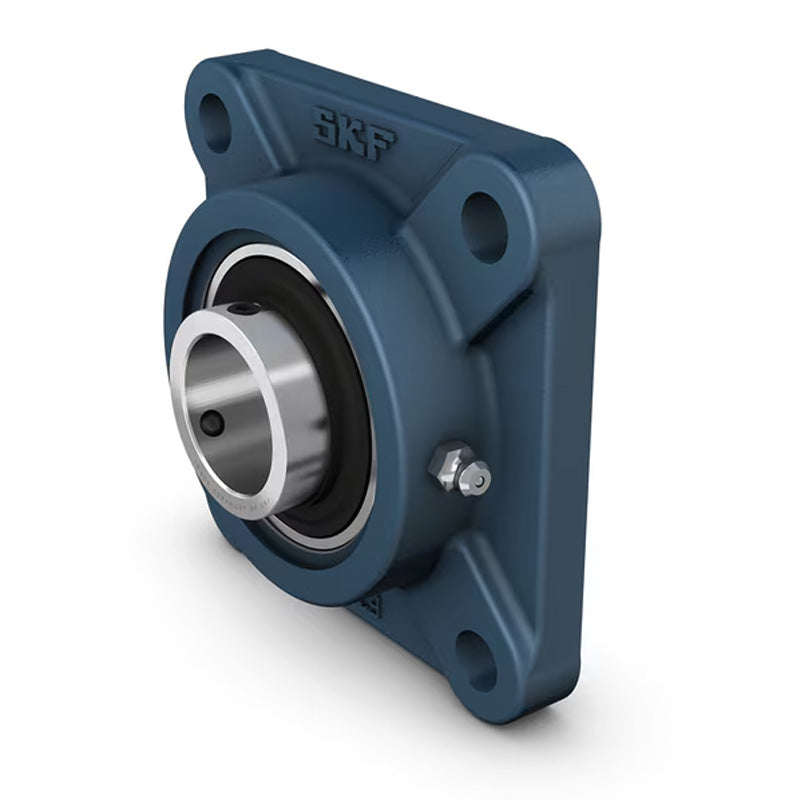

SKF FYJ30TF Square Cast Housing with Grub Screw 30mm Insert
SKF FYJ30TF Square Cast Housing with Grub Screw 30mm Insert
Regular price
€57,48
ex VAT
Regular price
Sale price
€57,48
ex VAT
In stock
Price Break
10+
€43,78
20+
€41,32
30+
€40,83
40+
€40,34
50+
€39,84
75+
€39,35
100+
€36,89
200+
€36,40
250+
€35,91
500+
€35,42
1000+
€34,43
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYJ
- Bolt Hole Centres:
- 83mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 31mm |
| A2 | 13mm |
| B | 38.1mm |
| Da | 93.7mm |
| J | 83mm |
| L | 108mm |
| N | 12mm |
| G | 10mm |
| s1 | 22.2mm |
| T | 40.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.2 kg |
