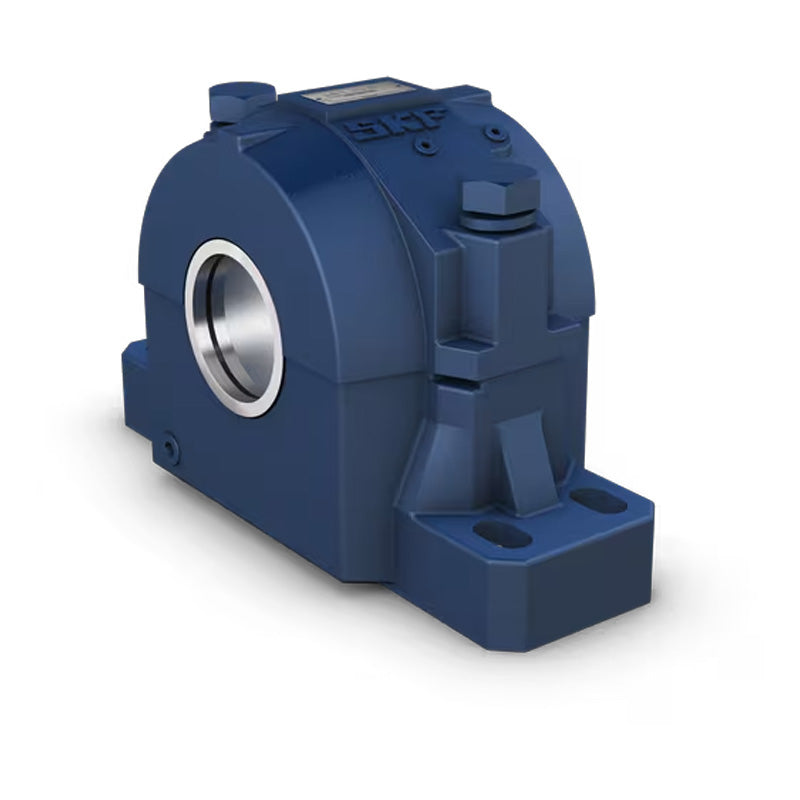

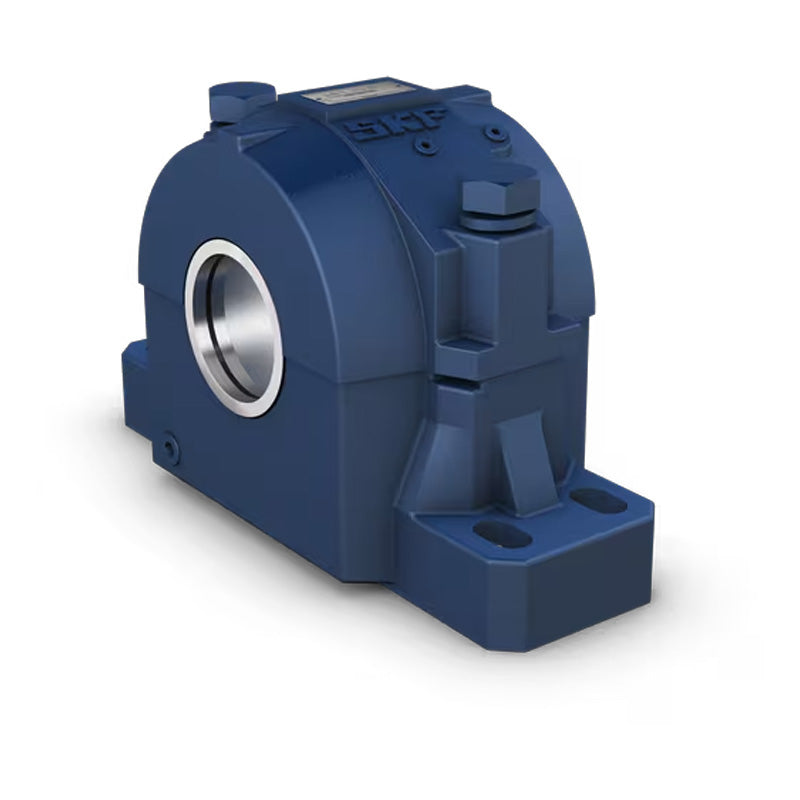

SKF FSAF1615/2-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAF1615/2-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
Technical
Technical
| Housing | FSAF615 |
|---|---|
| Triple Ring Seal | LOR37 |
| Taconite Seal | TER37 |
| Bearing | 1315K |
| Adaptor Sleeve | HA315 |
| Fixing Rings | 2 x SR1615 |
| End Cover | EPR7 |
| da | 2-7/16 inch |
| A1 | 3-7/8 inch = 98.4mm |
| A2 | 5-5/8 inch = 149.2mm |
| A3 | 8-11/16 inch = 220.6mm |
| H | 7-9/16 inch = 192.1mm |
| H1 | 4 inch = 101.6mm |
| H2 | 1-5/8 inch = 41.3mm |
| Static oil level H3 Roller bearing | 1-19/32 inch = 40.5mm |
| Static oil level H3 Ball bearing | 1-11/16 inch = 42.9mm |
| J max | 11-5/8 inch = 295.3mm |
| J min | 10-3/8 inch = 263.5mm |
| J1 | 2-1/8 inch = 54mm |
| L | 13-3/4 inch = 349.2mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| Weight | 23.1 kg |
