SKU: FR.1.ZZ
FR1ZZ Budget Metal Shielded Flanged Deep Groove Ball Bearing 0.055x3/16x7/64 inch
FR1ZZ Budget Metal Shielded Flanged Deep Groove Ball Bearing 0.055x3/16x7/64 inch
Out of stock
Share this product
Description
Description

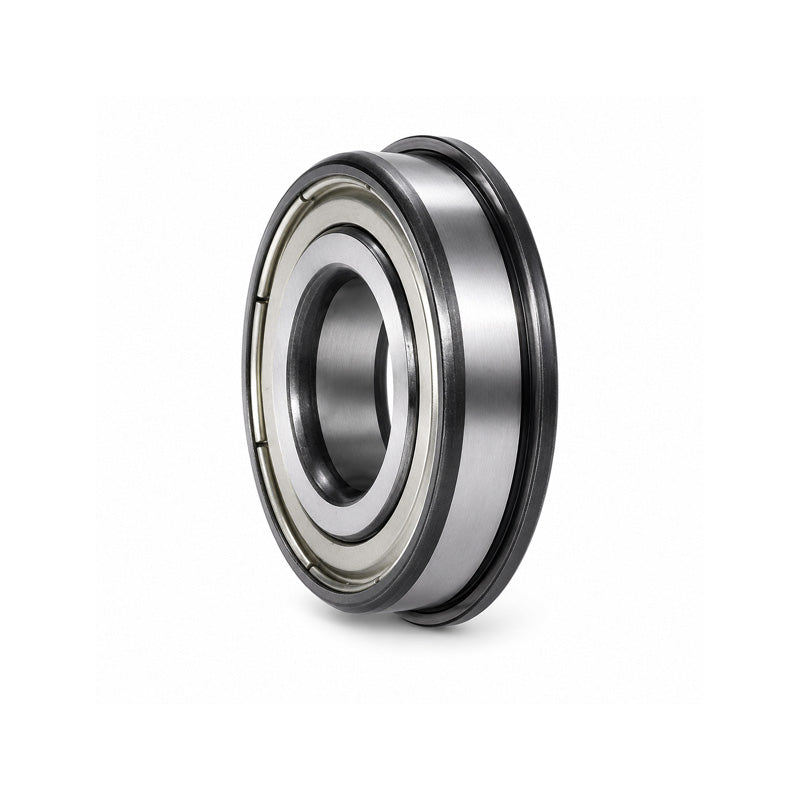

Flanged Metal Shielded Deep Groove Ball Bearings: Manufactured to the same principal sizes as standard bearings but fitted with metal shields, these bearings have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports. The shields serve to offer protection to prevent ingress of debris and dust whilst retaining the grease within the bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 1.4mm = 0.055 inch
- Outside Diameter:
- 4.76mm = 0.187 (3/16) inch
- Width:
- 2.78mm = 0.109 (7/64) inch
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside diameter d | 0.055 inch |
|---|---|
| Outside diameter D | 3/16 inch |
| Bearing width B | 7/64 inch |
| Flange diameter P | 0.234 inch |
| Flange width w | 0.031 inch |
