SKU: FR.09

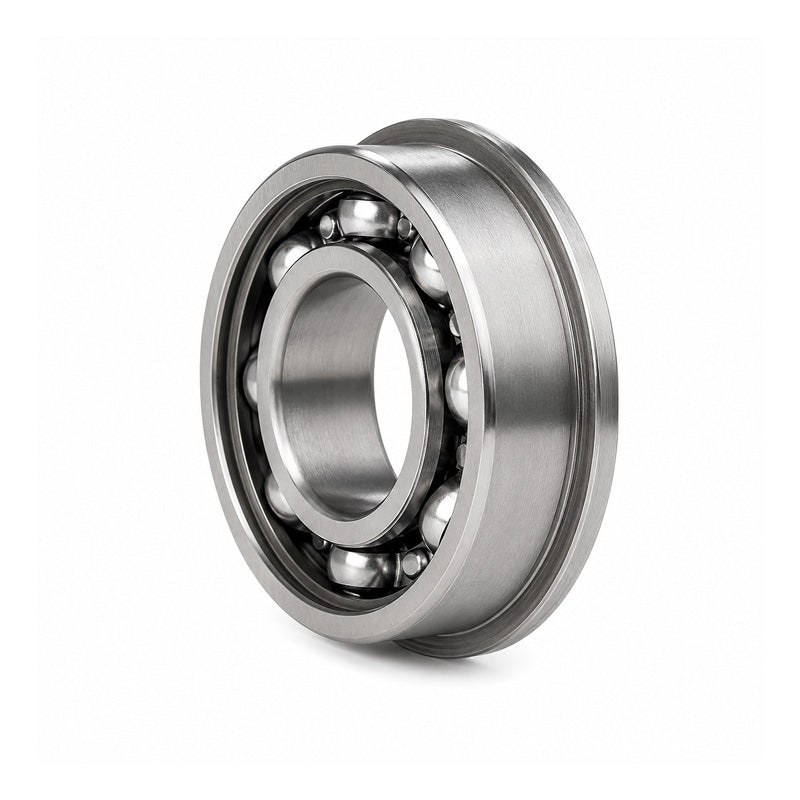

FR09 Budget Open Flanged Deep Groove Ball Bearing 0.04x1/8x3/64 inch
FR09 Budget Open Flanged Deep Groove Ball Bearing 0.04x1/8x3/64 inch
Out of stock
Description
Description
|
Flanged Deep Groove Ball Bearings: Manufactured to the same principal sizes as standard bearings these have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports Benefits: Cost effective replacement bearing, Flanged design |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 1.02mm = 0.04 inch
- Outside Diameter:
- 3.18mm = 0.125 (1/8) inch
- Width:
- 1.19mm = 0.047 (3/64) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside diameter d | 0.04 inch |
|---|---|
| Outside diameter D | 1/8 inch |
| Bearing width B | 3/64 inch |
| Flange diameter P | 0.171 inch |
| Flange width w | 0.013 inch |
