SKU: FMTC12-W-PBC

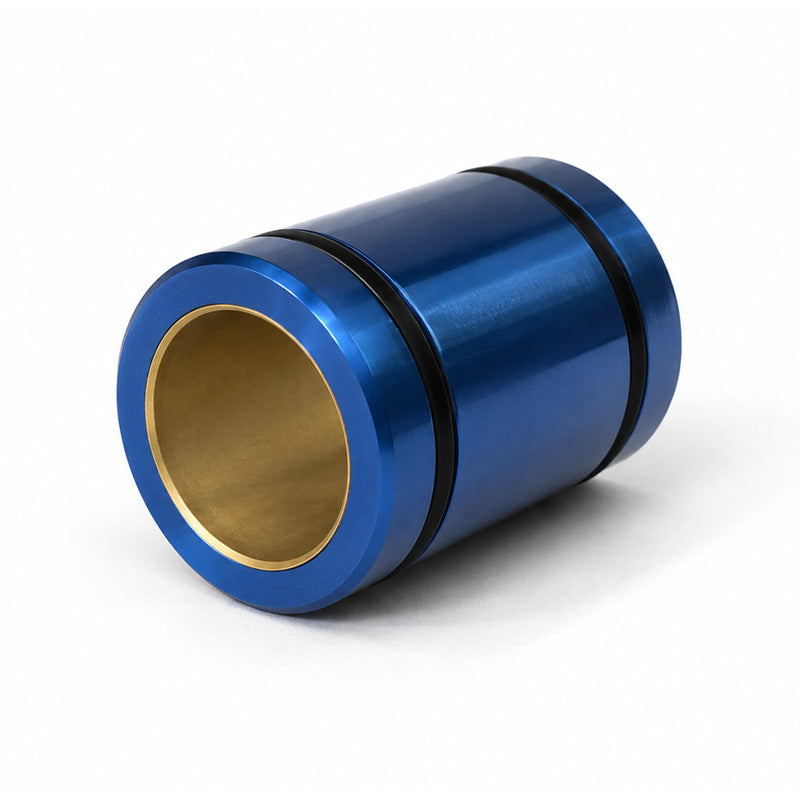

Simplicity FMTC12W Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Food Grade Liner 12x19x28mm Allow 2-3 Days
Simplicity FMTC12W Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Food Grade Liner 12x19x28mm Allow 2-3 Days
Out of stock
Share this product
Description
Description
Simplicity Metric Compact Compensated Thin Wall Linear Plain Bearings with Frelon Food Grade Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. They are made from the same construction and smooth operation as the FM series but in a more compact package. The Frelon W has a white color, food-grade liner, FDA compliant, compatible with stainless steel and softer metal shafting.
Benefits: Self lubricating for oil free operation, Static Load Capacities up to 72 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 19mm
- Length:
- 28mm
Technical
Technical
| Nominal Size | 12mm |
|---|---|
| Bearing ID A Min | 12.066mm |
| Bearing ID A Max | 12.093mm |
| Outside Diameter B h7 Min | 18.979mm |
| Outside Diameter B h7 Max | 19mm |
| Length C Min | 27.619mm |
| Length C Max | 28mm |
| Concentric Max | 0.0254mm |
| Between O-Ring Grooves J | 14mm |
| O-Ring Grooves Width JA | 2mm |
| O-Ring Grooves Diameter JB | 16.6mm |
| O-Ring Size | 16x1.5 |
| O-Ring Part No. | 6000027 |
| Effective Surface Area | 3.4CM<sup>2</sup> |
| Max Static Load Frelon® | 3463 N |
| PV Max | 0.35 N/mm<sup>2</sup> |
| Speed Running Dry | 0.71 (m/s) |
| Speed Running with Lubrication | 2.03 (m/s) |
