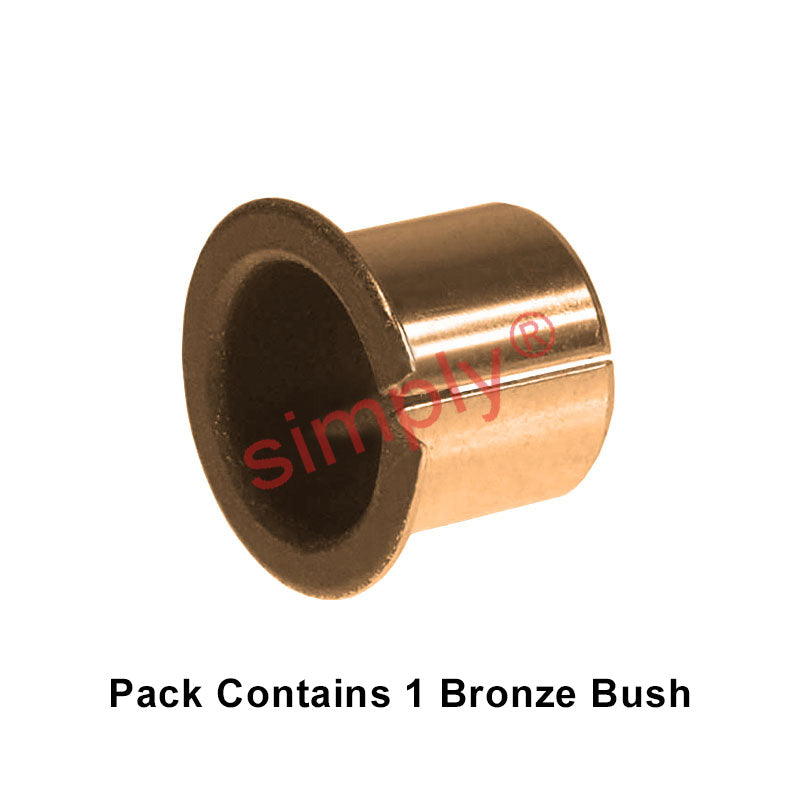

FMB1017 Budget Flanged Wrapped Bronze Plain Backed Bush 10x12x17mm

Flanged Wrapped Bronze Plain Backed Bushes: These maintenance-free flanged bushes offer a low-cost low friction solution. Comprising of a flanged bronze backing and a 0.2 - 0.35mm thick layer of Polytetra-Fluroethylene PTFE. During manufacture the pores of the bronze layer are filled with the PTFE material, additionally, a layer up to 0.03mm is added over the top. The PTFE material is applied to the inside only, the outer surface ends and the split rolled joint are protected against corrosion with a layer of tin. These bushes have very high compressive strength and provide good thermal conductivity. This bush style is often referred to as a Permaglide bush.
Benefits: Low cost, high thermal conductivity, oil-free, maintenance-free, good corrosion resistance, flanged design

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

10mm

Outside Diameter:

12mm

Length:

17mm
