SKU: FC2.3/16-RHP

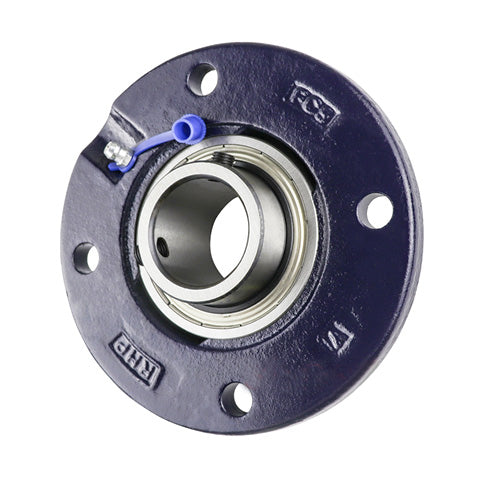

RHP FC2.3/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-3/16 inch Insert

RHP FC2.3/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-3/16 inch Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-3/16 inch
L 7.283 inch
H 4.921 inch
J 5.906 inch
G 0.625 inch
A 1.083 inch
A1 1.311 inch
A5 0.591 inch
B 2.187 inch
s 0.877 inch
d1 2.709 inch
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-2-3/16G+insonly">1055-2-3/16G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
