SKU: FC15/16-RHP

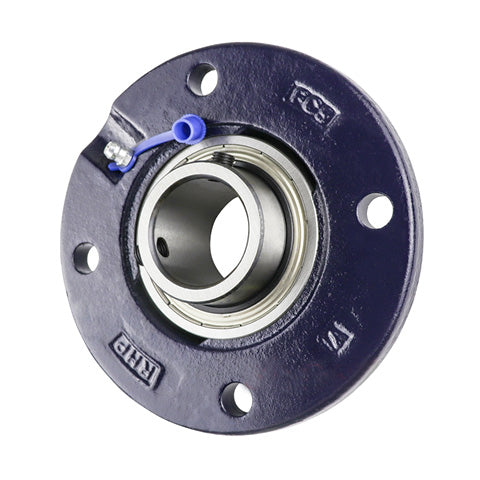

RHP FC15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 15/16 inch Insert

RHP FC15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 15/16 inch Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 15/16 inch
L 4.528 inch
H 2.756 inch
J 3.543 inch
G 0.3125 inch
A 0.748 inch
A1 0.683 inch
A5 0.354 inch
B 1.343 inch
s 0.564 inch
d1 1.339 inch
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1025-15/16G+insonly">1025-15/16G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
