SKU: FC1.1/4AR-RHP

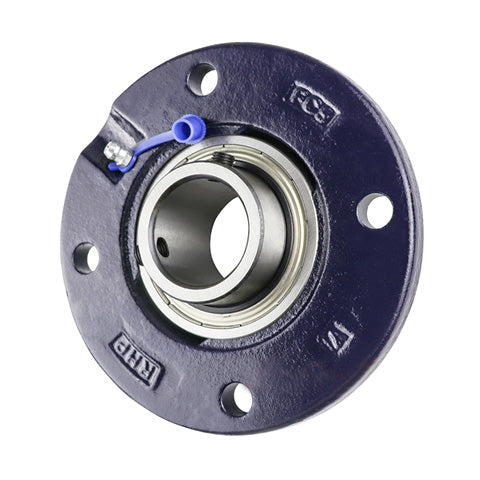

RHP FC1.1/4AR-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert

RHP FC1.1/4AR-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-1/4 inch Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 4.921 inch
H 3.15 inch
J 3.937 inch
G 0.375 inch
A 0.807 inch
A1 0.796 inch
A5 0.374 inch
B1 1.229 inch
s1 0.356 inch
d1 1.575 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-1-1/4AG+insonly">1230-1-1/4AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
