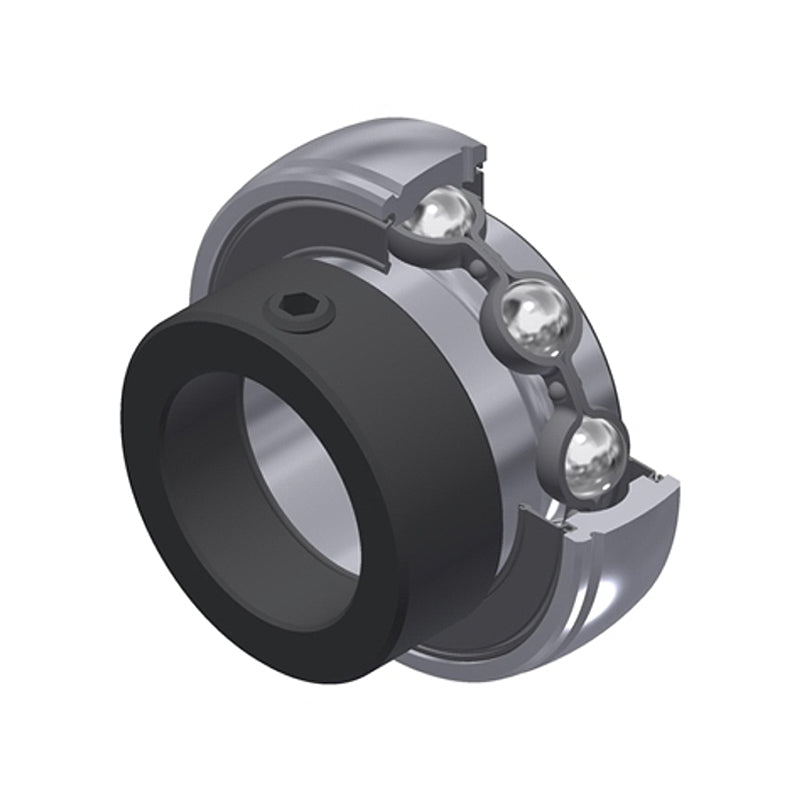

SNR ES203G1N Metric Flatback Grooved Spherical Outer Bearing Insert 17mm Bore 40mm Outside Diameter with Eccentric Collar - Allow 2-3 Days

SNR ES-G1N Flatback Grooved Spherical Outer High Temp Bearing Insert with Eccentric Collar: This bearing insert is designed for use with protective caps PCC and PCO. Each steel insert features a narrow inner ring design and includes a zinc-coated sheet steel retainer with a vulcanized NBR seal, with the axially preloaded seal lip positioned behind a protective edge. The bearing insert has a groove in the outer ring, making it suitable for installation in ISO-flanged housings. It performs well in normal environmental conditions and supports medium to high rotation speeds.
Benefits: High-quality brand, high-performance, high temperature

Brand / Quality:

SNR - High Quality

Thread Size:

M6x1

Inside Diameter:

17mm

Outside Diameter:

40mm

Width:

28.6mm

Style:

ES
