SKU: EE843220/290-SKF

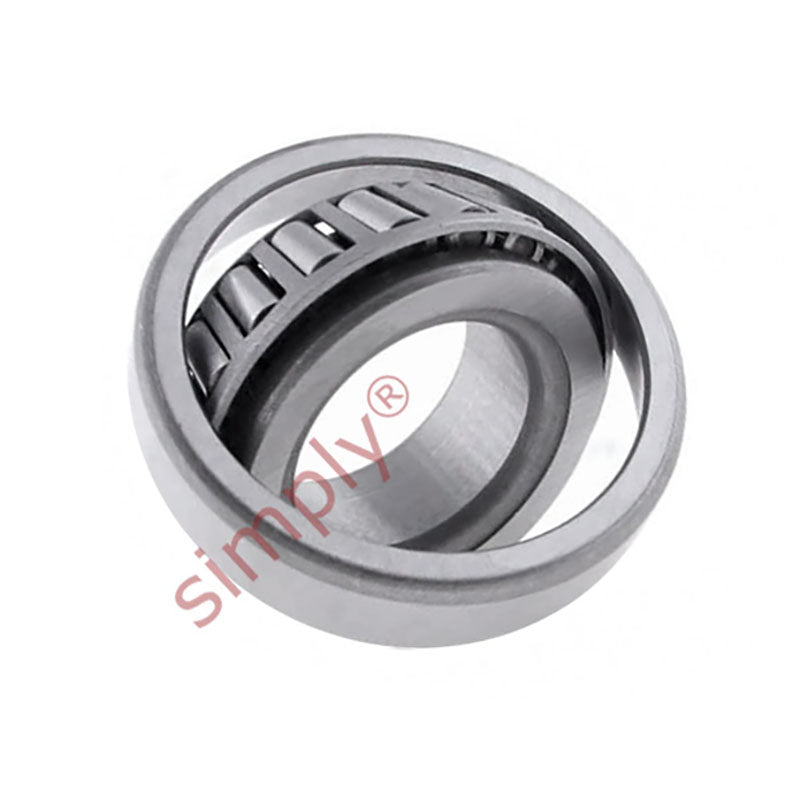

SKF EE843220/290 Imperial Taper Roller Bearing 22x29x3.4688 inches

Name: SKF EE843220/290 Imperial Taper Roller Bearing 22x29x3.4688 inches
Brand: SKF
SKU: EE843220/290-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 558.8mm = 22 inch
Outside Diameter:: 736.6mm = 29 inch
Width:: 88.11mm = 3.469 (3-15/32) inch
Seals / Shields:: None

Technical

d	558.8mm
D	736.6mm
T	88.108mm
Dynamic load	1830 kN
Static load	4150 kN
Fatigue load limit Pu	305 kN
Reference speed	500 rpm
Limiting speed	750 rpm
Weight	92.5 kg
d1	637mm
B	88.108mm
C	63.5mm
r1r2 min	6.4mm
r3r4 min	6.4mm
a	111mm
da max	600mm
db min	590mm
Da min	689mm
Da max	704mm
Db min	707mm
Ca min	13mm
Cb min	24.5mm
ra max	6mm
rb max	6mm
Calculation factor e	0.35
Calculation factor Y	1.7
Calculation factor Y0	0.9
