SKU: EAL50D2RS-FLURO

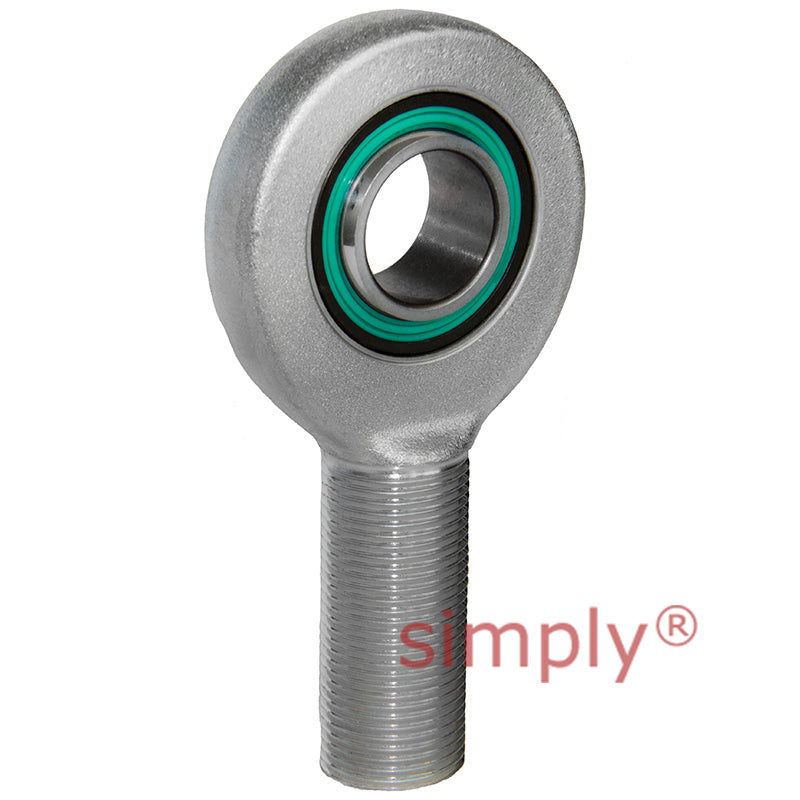

Fluro EAL50D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M45x3 Thread
Fluro EAL50D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M45x3 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D (-2RS) Series Zinc Plated Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with maintenance free Spherical Plain Bearings. For use at high unidirectional loads and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M45x3
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 45x3mm
- Inside Diameter:
- 50mm
- Material:
- Steel / Steel
Technical

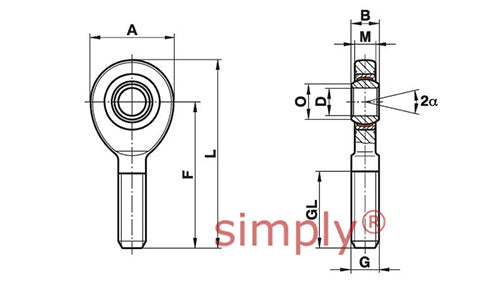

Technical
| Bore Size D | 50mm |
|---|---|
| B | 35mm |
| M | 30mm |
| A | 112mm |
| F | 185mm |
| L | 241mm |
| O | 56mm |
| Thread Size G | M45x3 |
| GL | 107mm |
| Static Load Co | 290kN |
| Dynamic Load | 295kN |
| Approx weight | 3.45kg |
