SKU: EAL20D2RS-FLURO

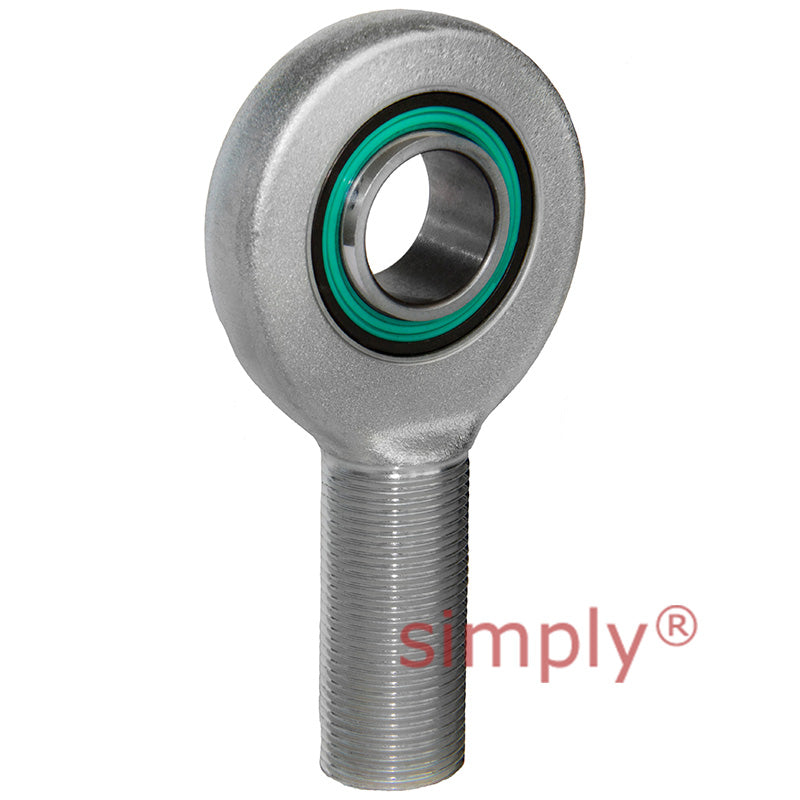

Fluro EAL20D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M20x1.5 Thread
Fluro EAL20D2RS Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M20x1.5 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D (-2RS) Series Zinc Plated Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with maintenance free Spherical Plain Bearings. For use at high unidirectional loads and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 20x1.5mm
- Inside Diameter:
- 20mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 20mm |
|---|---|
| B | 16mm |
| M | 13mm |
| A | 53mm |
| F | 78mm |
| L | 104.5mm |
| O | 24.2mm |
| Thread Size G | M20x1.5 |
| GL | 43mm |
| Static Load Co | 62.5kN |
| Dynamic Load | 31.5kN |
| Approx weight | 0.32kg |
