SKU: EAL12D-FLURO

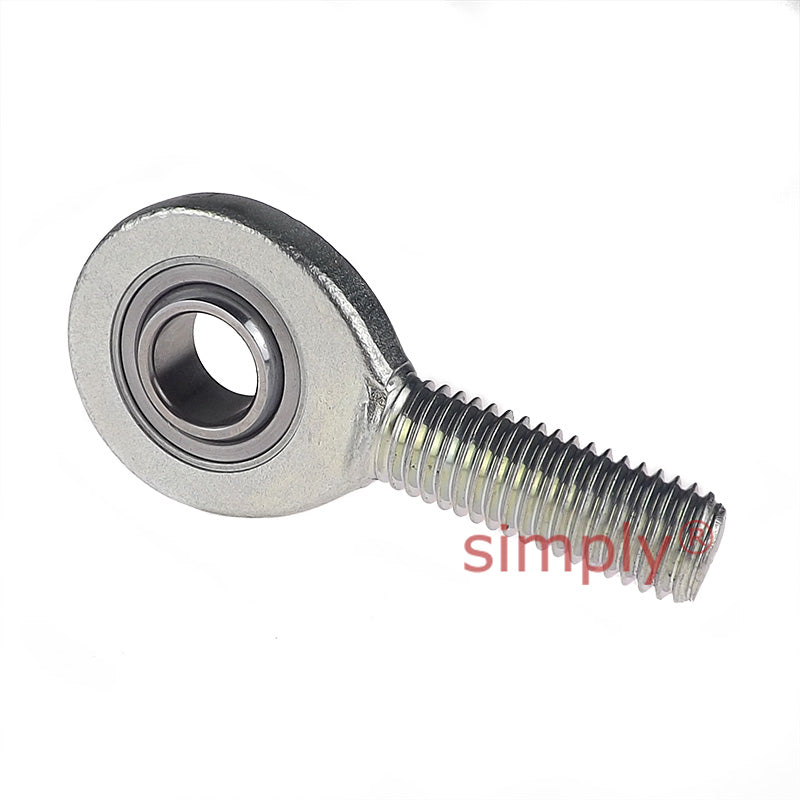

Fluro EAL12D Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M12 Thread
Fluro EAL12D Left Hand Zinc Plated Steel / Steel Maintenance Free Male Plain Rod End M12 Thread
Out of stock
Share this product
Description
Description
Fluro EA..D (-2RS) Series Zinc Plated Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with maintenance free Spherical Plain Bearings. For use at high unidirectional loads and limited fitting dimensions.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 12mm
- Inside Diameter:
- 12mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 12mm |
|---|---|
| B | 10mm |
| M | 8mm |
| A | 34mm |
| F | 54mm |
| L | 71mm |
| O | 14.9mm |
| Thread Size G | M12 |
| GL | 28mm |
| Static Load Co | 29kN |
| Dynamic Load | 11.5kN |
| Approx weight | 0.086kg |
