SKU: EA702RS-FLURO

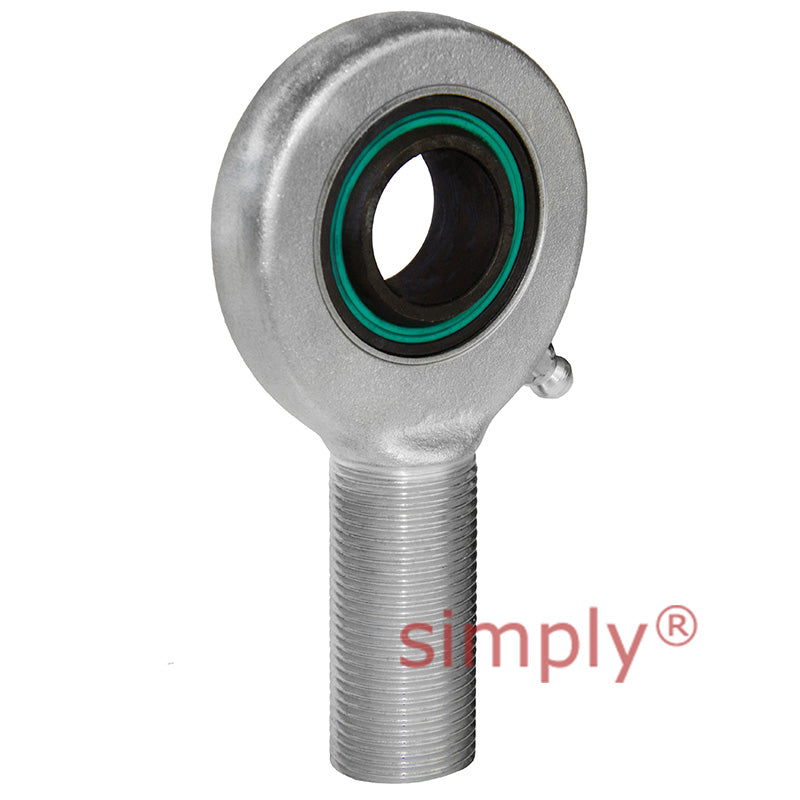

Fluro EA702RS Right Hand Zinc Plated Steel / Steel Male Plain Rod End M56x4 Thread
Fluro EA702RS Right Hand Zinc Plated Steel / Steel Male Plain Rod End M56x4 Thread
Out of stock
Share this product
Description
Description
Fluro EA (-2RS) Series Zinc Plated Steel Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel zinc plated, with steel on steel Spherical Plain Bearings which require lubrication. For use at high multidirectional loads and limited fitting dimensions
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M56x4
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 56x4mm
- Inside Diameter:
- 70mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 70mm |
|---|---|
| B | 49mm |
| M | 42mm |
| A | 160mm |
| F | 235mm |
| L | 315mm |
| O | 77.9mm |
| Thread Size G | M56x4 |
| GL | 125mm |
| Static Load Co | 564kN |
| Dynamic Load | 315kN |
| Approx weight | 8.2kg |
