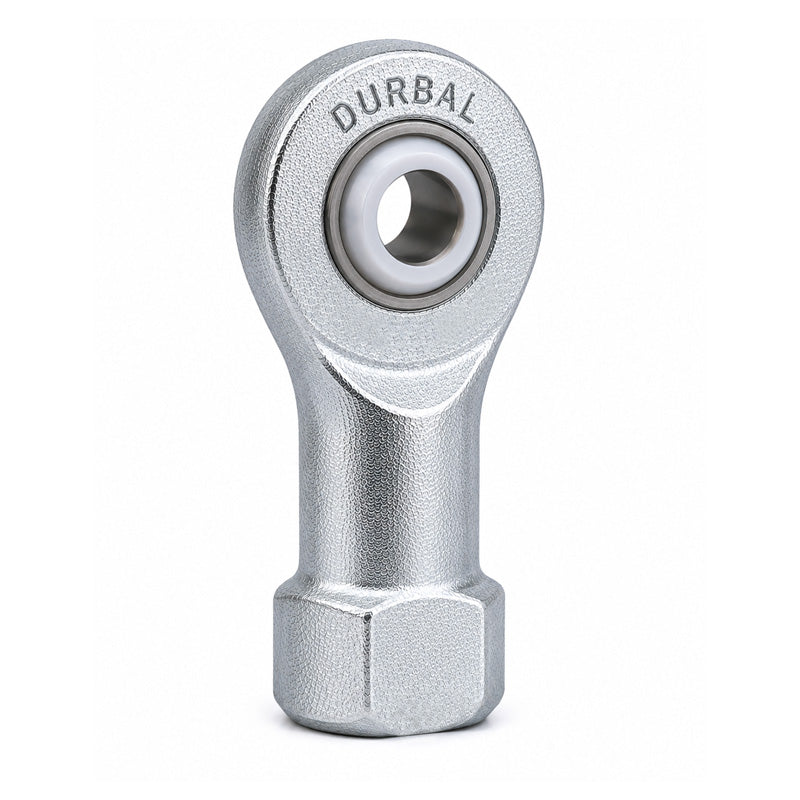

Durbal DSIL05-T/K.M4 Maintenance Free Left Hand Metric Steel / PTFE Lined Female Rod End M4x0.7 Thread

DURBAL Standard Female Rod Ends with Pressed Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised, forged, heat-treated steel housing with a bearing brass outer ring lined with bronze - PTFE composite and a steel joint ball bearing. Suitable for use in situations of low speeds and dynamic loads. Made of forged and heat-treated steel, which protects against corrosion by galvanisation. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -40 deg C to +200 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M4x0.7

Thread M / F:

Female

Thread Direction:

Left Hand

Inside Diameter:

5mm

Material:

PTFE Lined
