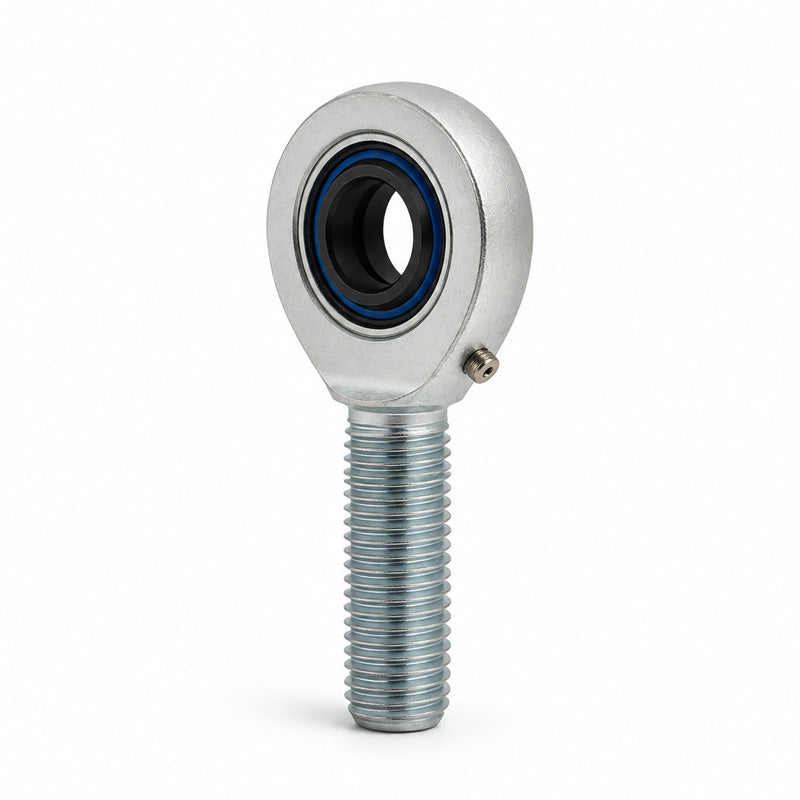

Durbal DSA40ES-2RS Maintenance Required Right Hand Metric Steel Male Rod End with Seals M39x3 Thread

DURBAL Standard Maintenance Required Male Rod Ends with Pressed Spherical-Plain Bearing and Seals: Threaded male rod end consisting of a galvanised, heat-treated, forged steel housing with a steel, hardened, ground, phospated outer ring with oil groove and drill holes and a steel joint ball(Outer ring has a split from size 15). Outer ring has 2RS Seals on both sides. Suitable for use with high alternating loads. Made of forged and heat-treated steel, protected against corrosion by galvanisation. Rod ends from size 15 can be greased subsequently by means of a funnel-type lubrication nipple, and from size 20 by means of a conical grease nipple. Temperature range: -40 deg C to +200 deg C.
Benefits: 2RS lip seals on both sides prevent the penetration of coarse dirt particles inside the bearing

Brand / Quality:

Durbal - High Quality

Thread Size:

M39x3

Thread M / F:

Male

Thread Direction:

Right Hand

Inside Diameter:

40mm
