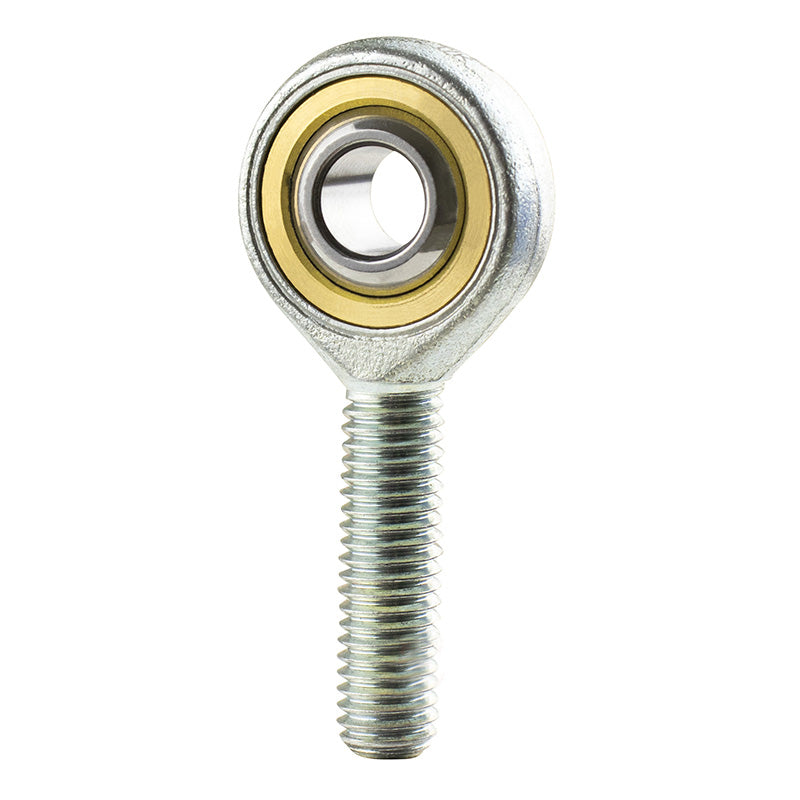

Durbal DSA22-T/K Maintenance Free Right Hand Metric Steel / PTFE Lined Male Rod End M22x1.5 Thread

DURBAL Standard Male Rod Ends with Pressed Spherical-Plain Bearing: Threaded male rod end consisting of a galvanised, forged, heat-treated steel housing with a bearing brass outer ring lined with bronze - PTFE composite and a steel joint ball bearing. Suitable for use in situations of low speeds and dynamic loads. Made of forged and heat-treated steel, which protects against corrosion by galvanisation. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M22x1.5

Thread M / F:

Male

Thread Direction:

Right Hand

Inside Diameter:

22mm

Material:

PTFE Lined
