SKU: DGK35SK-DURB

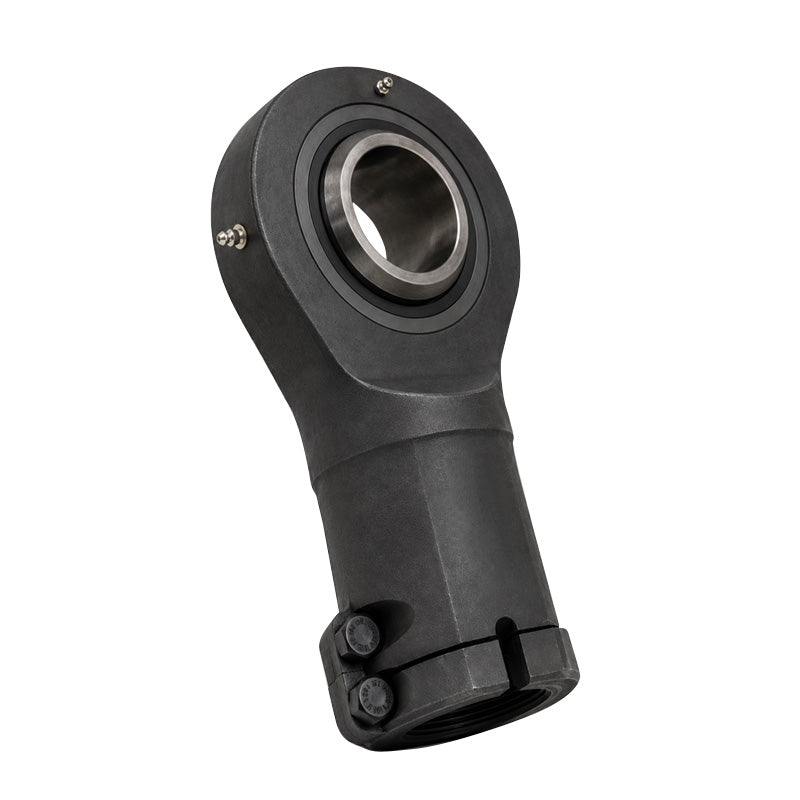

Durbal DGK35SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M30x2 Thread
Durbal DGK35SK Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M30x2 Thread
Out of stock
Description
Description
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M30x2
- Thread M / F:
- Female
- Inside Diameter:
- 20mm
Technical
Technical
| d | 35mm |
|---|---|
| d1 | 39.7mm |
| d2 | 78mm |
| d4 | 44mm |
| d5 | 70mm |
| dk | 47mm |
| G (Thread) | M30x2mm |
| B | 30mm |
| C1 | 25mm |
| C2 | 28mm |
| l3 | 45mm |
| l4 | 132mm |
| l7 | 40mm |
| h1 | 90mm |
| tilt angle α | 7 deg |
| weight | 1.3kg |
| basic load rating dyn C | 64 kN |
| basic load rating stat Co | 144 kN |
| radial clearance CN | 8-100 µm |
