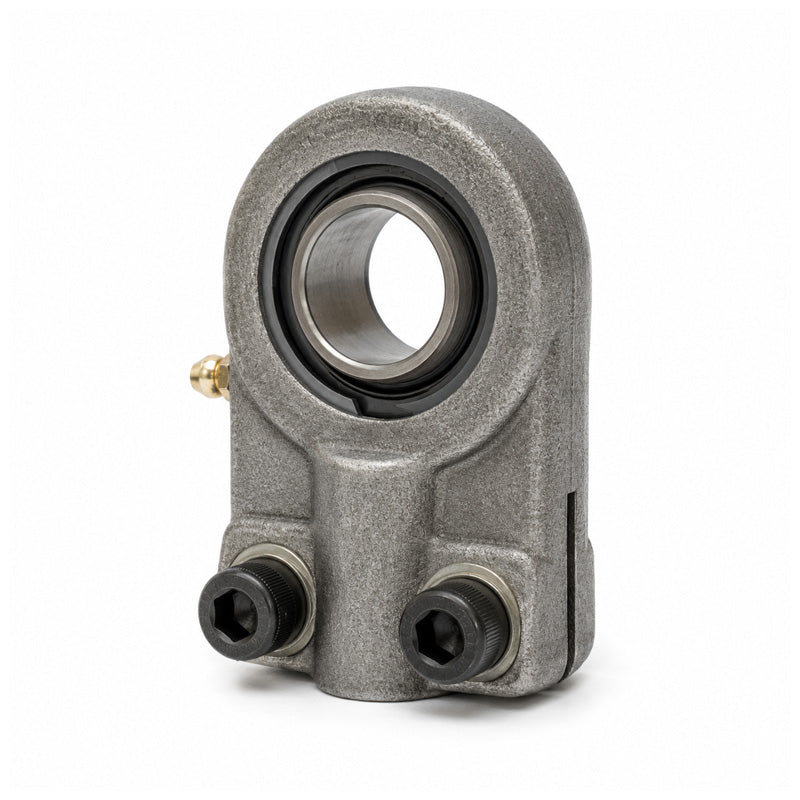

Durbal DGIHN-KL16LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M14x1.5 Thread

DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.

Brand / Quality:

Durbal - High Quality

Thread Size:

M14x1.5

Thread M / F:

Female

Thread Direction:

Left Hand

Inside Diameter:

16mm
