SKU: DGEZ127ES-DURB
Durbal DGEZ127ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 5x5-23/32x7-3/4 inch
Durbal DGEZ127ES Maintenance Required Steel / Steel Imperial Spherical Plain Bearing 5x5-23/32x7-3/4 inch
Out of stock
Share this product
Description
Description

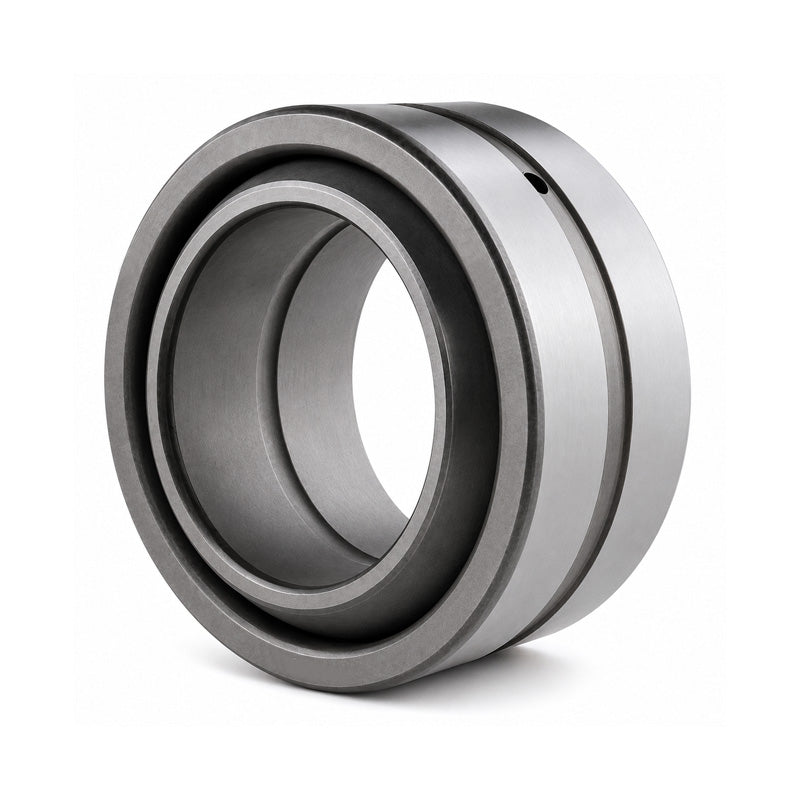

DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 127mm = 5 inch
Technical
Technical
| d | 127mm = 5inch |
|---|---|
| d1 | 145.4mm |
| D | 196.85mm |
| dk | 183mm |
| B | 111.125mm |
| C | 95.25mm |
| rs | 1mm |
| r1s | 1mm |
| tilt angle α | 6 deg |
| weight | 13.5kg |
| basic load rating dyn C | 1400 kN |
| basic load rating stat Co | 4150 kN |
| CN | 130-230 µm |
