SKU: DGE260ES-DURB

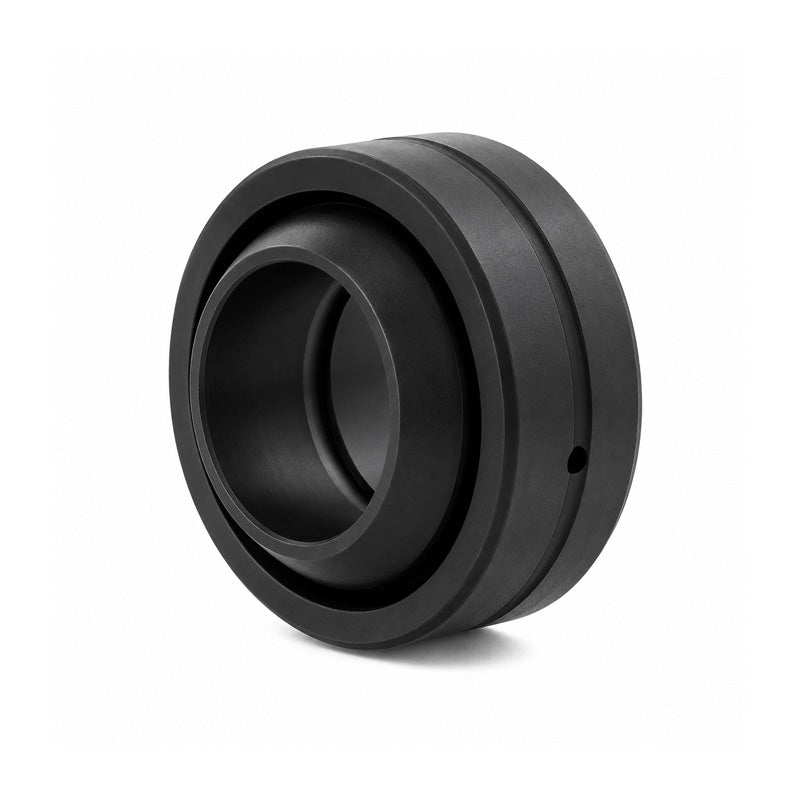

Durbal DGE260ES Maintenance Required Steel / Steel Spherical Plain Bearing 260x370x150mm
Durbal DGE260ES Maintenance Required Steel / Steel Spherical Plain Bearing 260x370x150mm
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 260mm
Technical
Technical
| d | 260mm |
|---|---|
| d1 | 288mm |
| D | 370mm |
| dk | 325mm |
| B | 150mm |
| C | 110mm |
| rs | 1.1mm |
| r1s | 1.1mm |
| tilt angle α | 7 deg |
| weight | 51.54kg |
| basic load rating dyn C | 3030 kN |
| basic load rating stat Co | 15190 kN |
| CN | 110-214 µm |
