SKU: DGE140ES-DURB

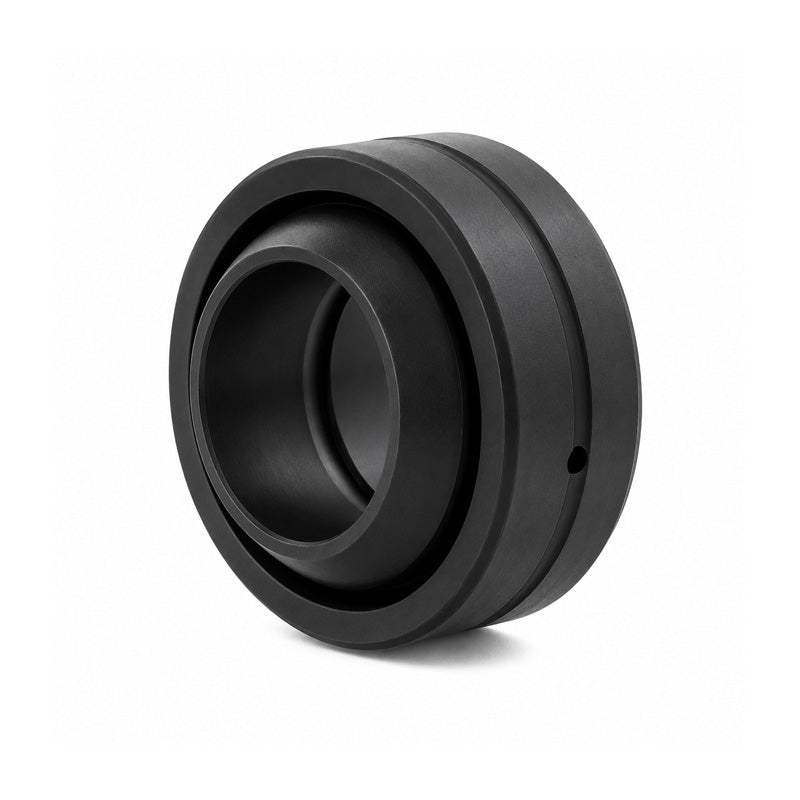

Durbal DGE140ES Maintenance Required Steel / Steel Spherical Plain Bearing 140x210x90mm
Durbal DGE140ES Maintenance Required Steel / Steel Spherical Plain Bearing 140x210x90mm
Out of stock
Share this product
Description
Description
DURBAL Maintenance Required Spherical-Plain Bearing - Sliding Combination Steel/Steel: These spherical bearings consist of a hardened, phosphated steel joint ball and a hardened, phosphated, single split steel outer ring with split, oil groove and drill holes. (Outer ring has a split from size 15) For use with high and alternating loads. Temperature range: -40 deg C to +200 deg C.
Note: Single Split outer ring from size 15
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 140mm
Technical
Technical
| d | 140mm |
|---|---|
| d1 | 155mm |
| D | 210mm |
| dk | 180mm |
| B | 90mm |
| C | 70mm |
| rs | 1mm |
| r1s | 1mm |
| tilt angle α | 7 deg |
| weight | 11kg |
| basic load rating dyn C | 1080 kN |
| basic load rating stat Co | 5400 kN |
| CN | 85-165 µm |
