SKU: DG14PW-DURB

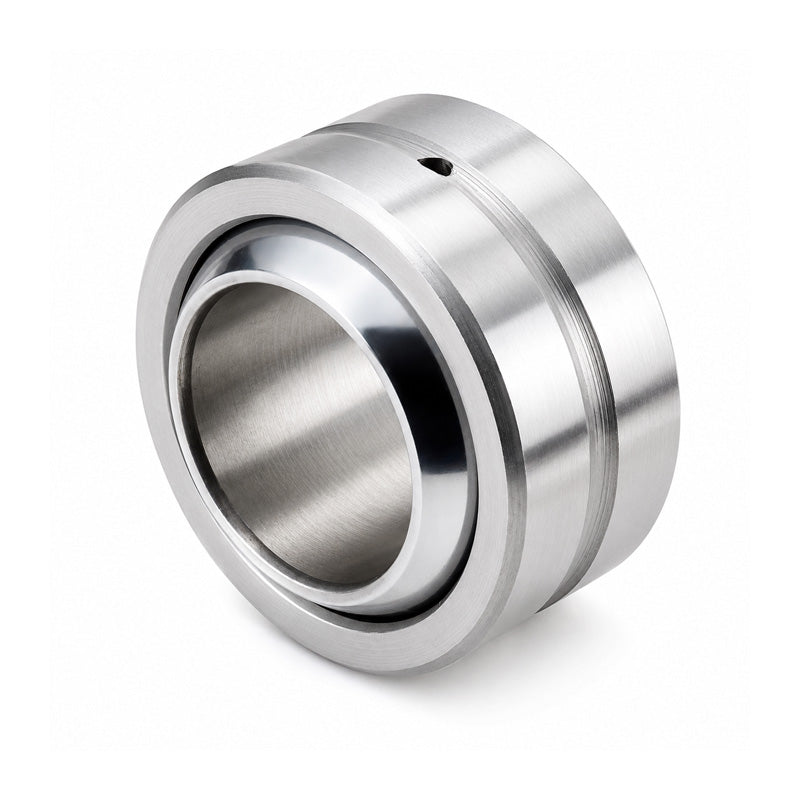

Durbal DG14PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 14x28x19mm
Durbal DG14PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 14x28x19mm
Equivalent to: GE14PW
Out of stock
Share this product
Description
Description
DURBAL Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a bearing brass outer ring lined with bronze - PTFE-composite. For use under high pressure and dynamic loads. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 14mm
- Material:
- PTFE Lined
Technical
Technical
| d | 14mm |
|---|---|
| d1 | 16.8mm |
| D | 28mm |
| dk | 25.4mm |
| B | 19mm |
| C | 13.5mm |
| rs | 0.4mm |
| r1s | 1.2mm |
| tilt angle α | 15 deg |
| weight | 0.09kg |
| basic load rating dyn C | 28 kN |
| basic load rating stat Co | 86 kN |
| radial clearance CN | 5-35 µm |
