SKU: CYNB-104-S-IKO

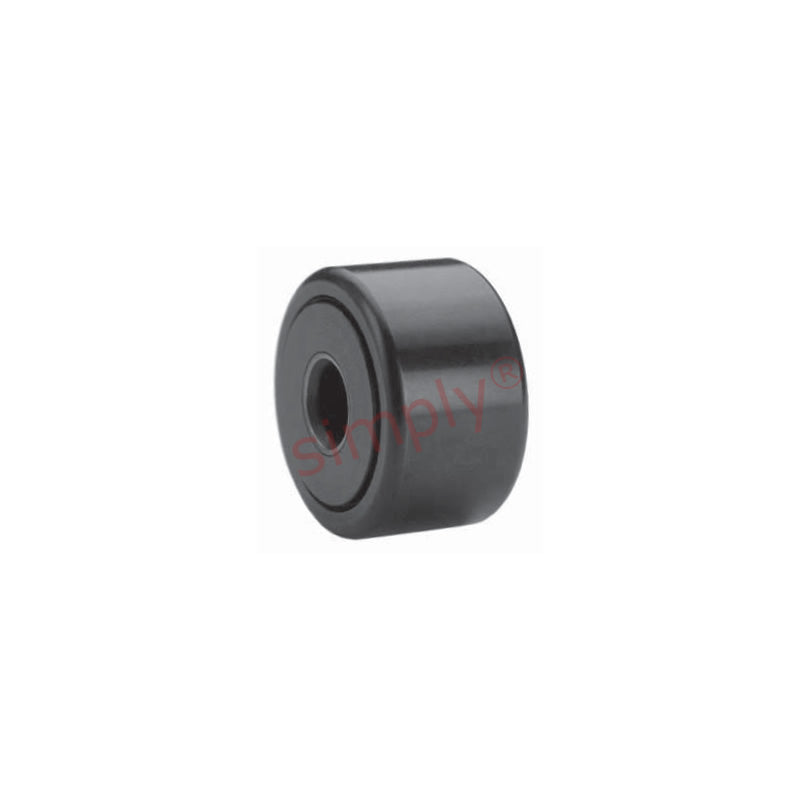

IKO CYNB104S Sealed Crowned Cam Yoke Roller 1x3.25x1.8125 inch Allow 7-10 Days
IKO CYNB104S Sealed Crowned Cam Yoke Roller 1x3.25x1.8125 inch Allow 7-10 Days
Out of stock
Description
Description
| Cam Yoke Roller: These bearings are easily mounted and ideally suited for many Cam or Track roller applications with moderate loading and shock. The bearings are sealed to help prevent contamination and retain lubrication. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Width:
- 46.04mm = 1.813 (1-13/16) inch
Technical
Technical
| A | 3.25 inch |
|---|---|
| B | 1 inch |
| C | 1.75 inch |
| D | 1.8125 inch |
| E | 2-1/4 inch |
| F | 1/8 inch |
| Recommended shaft diameter | 0.9996 inch |
| Max static capacity | 49820 lbs |
| Basic dynamic rating | 15720 lbs |
