SKU: CUC218

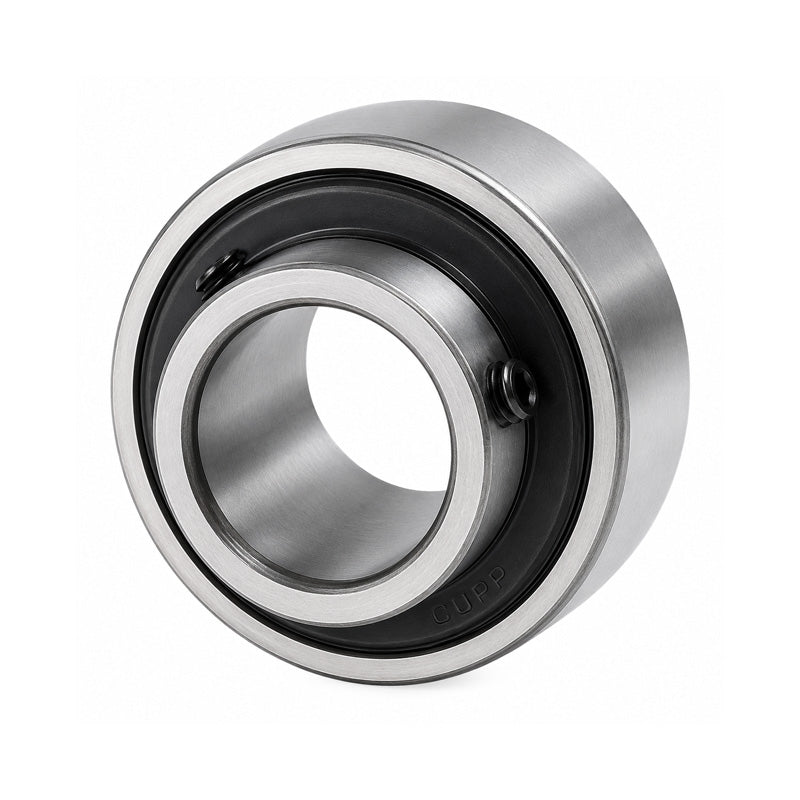

CUC218 Metric Cylindrical Bearing Insert with 90mm Bore 160mm Outside Dia
CUC218 Metric Cylindrical Bearing Insert with 90mm Bore 160mm Outside Dia
Equivalent to: UR218 RB218
Out of stock
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| Bi | 96mm |
| Be | 36mm |
| N | 39.7mm |
| M | 56.3mm |
| G | 12mm |
| ds | M12x1.5, 7/16-20UNF |
| Dynamic Load | 96000 N |
| Static Load | 71500 N |
| Weight | 4.36 kg |
